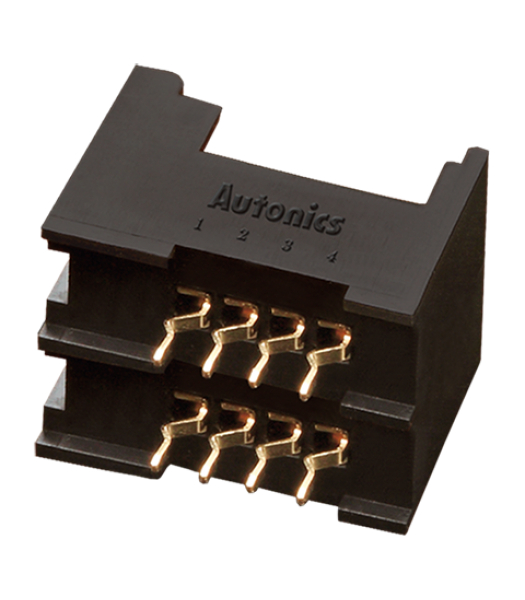

Board mount socket, 4pin, 2 Line
Unit of Measure
Specifications
Maximum Alternating Current (AC)/Direct Current (DC) Voltage |
N/A ~250 V |
Terminal Material |
N/A C5210 (Gold 0.2 μm) |
Body Material |
N/A Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0) |
Type |
N/A Sensor Connector |
Maximum Rated Current |
N/A 3.0 A |
Connector Type |
N/A Board Mount Socket |
Number of Pins |
N/A 4 |
Minimum Terminal Retention |
N/A 1.4 kgf |
Minimum Extraction per Pin |
N/A 0.49 N50 gf |
Maximum Insertion per Pin |
N/A 1.96 N200 gf |
Number of Lines |
N/A 2 |
Printed Circuit Board (PCB) |
N/A Fender Plated-Through Hole |
Printed Circuit Board (PCB) Thickness |
N/A 1.0 to 2.2 mm |
Printed Circuit Board (PCB) Hole Diameter |
N/A 1 mm |
Weight |
N/A 0.56 lb |
