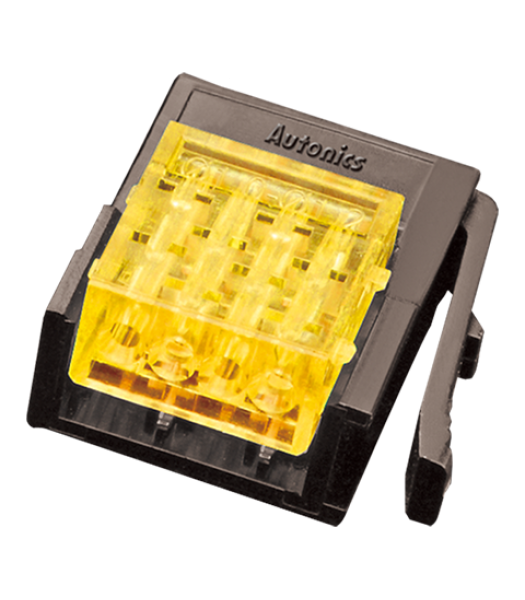

Wire mount plug, Yellow, 4pin, AWG24 to 26, Wire0.13 to 0.21, ø1.0 to 1.2mm
Unit of Measure
Specifications
Maximum Alternating Current (AC)/Direct Current (DC) Voltage |
N/A ~250 V |
Terminal Material |
N/A C5210 (Gold 0.2 μm) |
Body Material |
N/A Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0) |
Case Material |
N/A Polycarbonate (UL94-V0) |
Type |
N/A Sensor Connector |
Cover Color |
N/A Yellow |
Maximum Rated Current |
N/A 3.0 A |
Connector Type |
N/A Wire Mount Plug |
Number of Pins |
N/A 4 |
Minimum Terminal Retention |
N/A 1.4 kgf |
Nominal Cross Section Area |
N/A 0.13 to 0.21 mm² |
Cover Diameter |
N/A 1.0 to 1.2 mm |
Minimum Extraction per Pin |
N/A 0.49 N50 gf |
Maximum Insertion per Pin |
N/A 1.96 N200 gf |
Color |
N/A Yellow |
Wire Size |
N/A 26-24 AWG |
Wire Cross Sectional Area |
N/A 0.13 to 0.21 mm² |
Weight |
N/A 0.56 lb |
