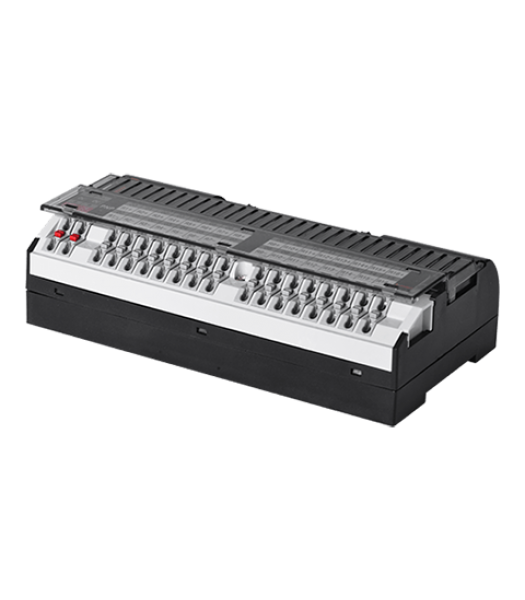

Relay terminal block, Hirose connector type, Omron G6B, 16 points, NPN Input. 24VDC.
Unit of Measure
Specifications
Current Consumption |
N/A ≤ 20 mA |
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Base Material |
N/A Modified Polyphenylene Oxide (MPPO) |
Cover Material |
N/A Polycarbonates (PC) |
Case Material |
N/A Modified Polyphenylene Oxide (MPPO) |
Terminal Block Material |
N/A Polycarbonate |
Approximate Packaged Weight |
N/A 446 g |
Approximate Weight |
N/A 348 g |
Power Indicator |
N/A Red Light Emitting Diode (LED) |
Operation Indicator |
N/A Blue Light Emitting Diode (LED) |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Rated Current |
N/A 3 A |
Alternating Current (AC) Rated Voltage |
N/A 250 V |
Direct Current (DC) Rated Voltage |
N/A 24 V30 V |
Rated Frequency |
N/A 50 Hz60 Hz |
24 Volt (V) Direct Current (DC) Rated Voltage Tolerance |
N/A ±10 % |
Terminal Type |
N/A Screwless |
Terminal Pitch |
N/A ≥7.8 mm |
Applicable Cable Diameter (Solid Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 0.6 to 1.25 mm |
Applicable Cable (Stranded Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 22-16 AWG |
Applied Relay |
N/A G6B-1174P-FD-US [OMRON] |
Number of Relay Points |
N/A 16-Point |
Alternating Current (AC) Dielectric Strength (Between Coil-Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 3,000 V |
Alternating Current (AC) Dielectric Strength (Between Same Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 1,000 V |
Weight |
N/A 0.2 lb |
