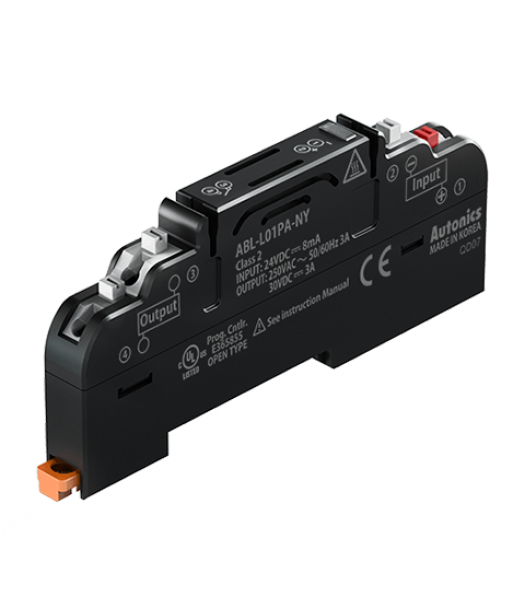

Relay terminal block, Matsushita(Panasonic)PA, 1 point, NPN Input. 24VDC.
Unit of Measure
Specifications
Current Consumption |
N/A ≤ 8 mA |
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Conducting Plate |
N/A Brass |
Base Material |
N/A Polyphenylene Sulfide |
Case Material |
N/A Polyphenylene Sulfide |
Terminal Block Material |
N/A Polyamide 66 |
Approximate Packaged Weight |
N/A 138 g |
Approximate Weight |
N/A 21 g |
Operation Indicator |
N/A Blue Light Emitting Diode (LED) |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Rated Current |
N/A 3 A |
Alternating Current (AC) Rated Voltage |
N/A 250 V |
Direct Current (DC) Rated Voltage |
N/A 24 V30 V |
Rated Frequency |
N/A 50 Hz60 Hz |
24 Volt (V) Direct Current (DC) Rated Voltage Tolerance |
N/A ±10 % |
Terminal Type |
N/A Screwless |
Terminal Pitch |
N/A 9.0 mm |
Note for Terminal Pitch |
N/A Arranging over 2 units |
Applicable Cable Diameter (Solid Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 0.6 to 1.25 mm |
Applicable Cable (Stranded Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 22-16 AWG |
Applied Relay |
N/A APAN3124 [MATSUSHITA (Panasonic)] |
Number of Relay Points |
N/A 1-Point |
Alternating Current (AC) Dielectric Strength (Between Coil-Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 3,000 V |
Alternating Current (AC) Dielectric Strength (Between Same Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 1,000 V |
Weight |
N/A 0.2 lb |
