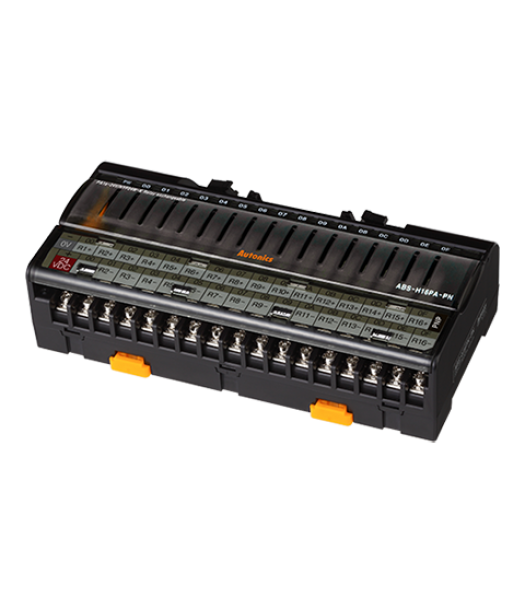

Relay Terminal Block, Hirose connector, 16Relays(250VCA 3A, 30VDC 3A), Matsushita(Panasonic APAN…
Unit of Measure
Specifications
Current Consumption |
N/A ≤ 13 mA≤ 8 mA |
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Body Material |
N/A Polyamide 66 (G25%) |
Case Material |
N/A Modified Polyphenylene Oxide (MPPO) |
Terminal Pin Material |
N/A Brass |
Approximate Packaged Weight |
N/A 307 g |
Approximate Weight |
N/A 224 g |
Power Indicator |
N/A Red Light Emitting Diode (LED) |
Operation and Disconnection Indicator |
N/A Blue Light Emitting Diode (LED) |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Rated Current |
N/A 3 A |
Maximum Rated Current |
N/A 3 A |
Connector Type |
N/A Hirose Connector |
Applicable Cable |
N/A 22-16 AWG0.30 to 1.25 mm² |
Alternating Current (AC) Rated Voltage |
N/A 250 V |
Direct Current (DC) Rated Voltage |
N/A 24 V30 V |
Input Direct Current (DC) Voltage |
N/A 12 to 24 V |
Number of Connector Pins |
N/A 20 |
Number of Terminals |
N/A 16 Each |
Applied Relay |
N/A APAN3124 [MATSUSHITA (Panasonic)] |
Number of Relay Points |
N/A 16-Point |
Alternating Current (AC) Dielectric Strength (Between Coil-Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 3,000 V |
Alternating Current (AC) Dielectric Strength (Between Same Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 1,000 V |
Relay Type |
N/A Matsushita (Panasonic) PA |
Input Logic |
N/A Negative-Positive-Negative (NPN) |
Weight |
N/A 1 lb |
