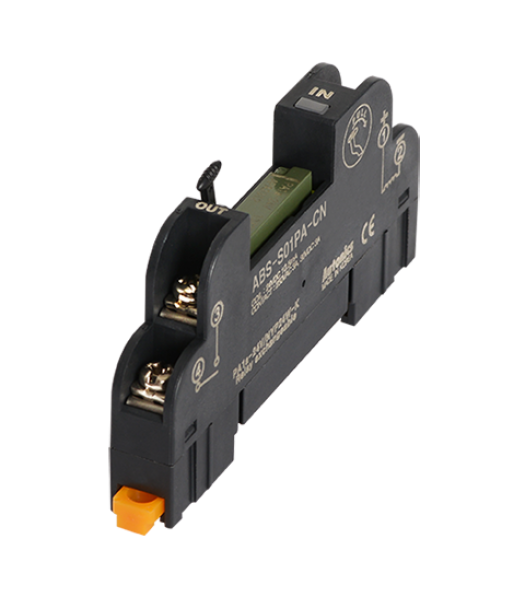

Relay Terminal Block, Screw type, 1Relay (250VCA 3A, 30VDC 3A), Matsushita(Panasonic APAN3124), …
Unit of Measure
Specifications
Current Consumption |
N/A ≤ 8 mA |
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Approval |
N/A European Conformity (CE) Underwriter Laboratories (UL) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Base Material |
N/A Polyamide 6 |
Case Material |
N/A Polyamide 6 |
Terminal Pin Material |
N/A Brass |
Approximate Packaged Weight |
N/A 314.5 g |
Approximate Weight |
N/A 21.5 g |
Operation Indicator |
N/A Blue Light Emitting Diode (LED) |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Rated Current |
N/A 3 A |
Maximum Rated Current |
N/A 3 A |
Connector Type |
N/A Screw |
Applicable Cable |
N/A 22-16 AWG0.30 to 1.25 mm² |
Alternating Current (AC) Rated Voltage |
N/A 250 V |
Direct Current (DC) Rated Voltage |
N/A 24 V30 V |
Input Direct Current (DC) Voltage |
N/A 12 to 24 V |
Number of Terminals |
N/A 1 Each |
Applied Relay |
N/A APAN3124 [MATSUSHITA (Panasonic)] |
Number of Relay Points |
N/A 1-Point |
Alternating Current (AC) Dielectric Strength (Between Coil-Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 3,000 V |
Alternating Current (AC) Dielectric Strength (Between Same Contacts) at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 1,000 V |
Relay Type |
N/A Matsushita (Panasonic) PA |
Weight |
N/A 0.56 lb |
