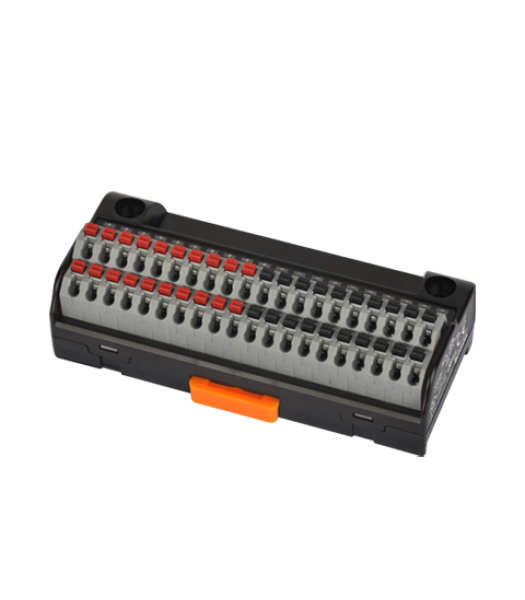

Common Terminal Block, Screwless Type, 40 Terminals, Left-Right COM, 250 VDC/VAC 50/60Hz
Unit of Measure
Specifications
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Terminal Material |
N/A Polyamide 66 |
Conducting Plate |
N/A Tin Plated Copper |
Base Material |
N/A Polycarbonate |
Case Material |
N/A Polycarbonate (PC) |
Approximate Packaged Weight |
N/A 146 g |
Approximate Weight |
N/A 79 g |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Alternating Current (AC) Dielectric Strength at 50/60 Hertz (Hz) Frequency for 1 minute (Between Open Terminals) |
N/A 3,000 V |
Maximum Rated Current |
N/A 10 A |
Alternating Current (AC) Rated Voltage |
N/A ≤250 V |
Direct Current (DC) Rated Voltage |
N/A ≤250 V |
Rated Frequency |
N/A 50 Hz60 Hz |
Terminal Type |
N/A Screwless |
Terminal Pitch |
N/A 5.0 mm |
Number of Terminals |
N/A 40 Each |
Common Type |
N/A Left+COM, Right-COM |
Applicable Cable Diameter (Solid Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 0.6 to 1.25 mm |
Applicable Cable (Stranded Wire) - (60 Degree Celsius (ºC) Temperature Only) |
N/A 22-16 AWG |
Stripped Wire Length |
N/A 8 to 10 mm |
Weight |
N/A 0.2 lb |
