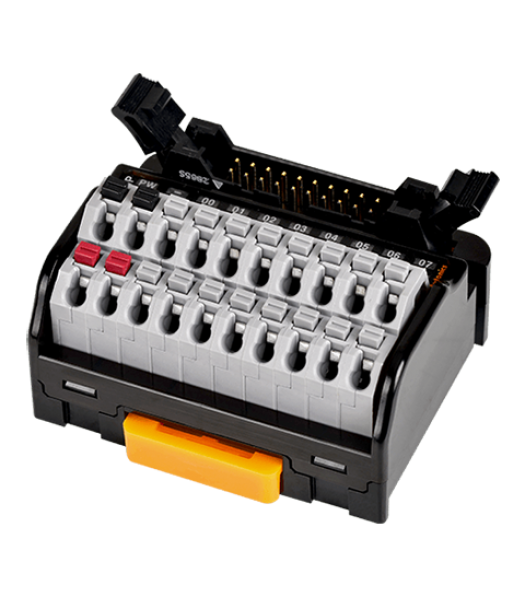

Screwless Interface Terminal Block, 20Pin, 16Terminal, PNP, 24VDC
Unit of Measure
Specifications
Environment Ambient Temperature |
N/A -15 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 65 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Base Material |
N/A Polycarbonate |
Case Material |
N/A Polycarbonate (PC) |
Approximate Packaged Weight |
N/A 86.3 g |
Approximate Weight |
N/A 48.6 g |
Power Indicator |
N/A Red Light Emitting Diode (LED) |
Operation Indicator |
N/A Blue Light Emitting Diode (LED) |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A ≥1,000 MΩ |
Alternating Current (AC) Dielectric Strength at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 2,700 V |
Rated Current |
N/A &l; 1 A |
Direct Current (DC) Rated Voltage |
N/A 24 V |
24 Volt (V) Direct Current (DC) Rated Voltage Tolerance |
N/A ±10 % |
Number of Connector Pins |
N/A 20 |
Terminal Type |
N/A Screwless |
Terminal Pitch |
N/A 5.0 mm |
Number of Terminals |
N/A 16 Each |
Weight |
N/A 0.2 lb |
