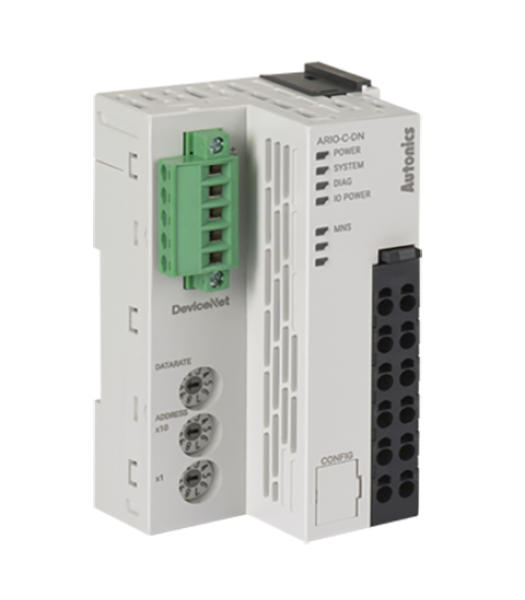

Slim Remote I/O, Coupler, DeviceNet, 24VDC, Max.32 units
Unit of Measure
Specifications
Environment Ambient Temperature |
N/A -10 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 70 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Korean Certification (KC) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Terminal Material |
N/A Polyamide 6 |
Body Material |
N/A Modified Polyphenylene Oxide |
Base Material |
N/A Polyamide 6 Polyoxymethylene |
Approximate Packaged Weight |
N/A 265 g |
Approximate Weight |
N/A 165 g |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A 100 or more MΩ |
Communication Speed |
N/A 500 kB/s |
Mounting Type |
N/A DIN Rail Mounting |
Coupler Type |
N/A DeviceNet |
Direct Current (DC) Power Supply Voltage (BUS (External Consumption)) |
N/A 24 V |
Direct Current (DC) Power Supply Current (BUS (External Consumption)) |
N/A 400 mA |
Maximum Power Supply (BUS (External Consumption)) |
N/A 9.6 W |
Power Supply Current (BUS (Internal Supply)) |
N/A 960 mA |
Maximum Power Supply (BUS (Internal Supply)) |
N/A 48 W |
Power Supply (Input/Output (I/O)) |
N/A 24 VDC, Maximum 4,000 mA (Maximum 96 W, Maximum 2,000 mA/CH, 2CH/COM) |
Direct Current (DC) Power Consumption Voltage (Coupler) |
N/A 24 V |
Power Consumption Current (Coupler - Standby/Run) |
N/A 200 mA |
Power Consumption Current (Maximum Load Coupler) |
N/A 400 mA |
Input Memory |
N/A 255 B |
Output Memory |
N/A 255 B |
Maximum Connections for Modules |
N/A 32 Units |
Communication Connector |
N/A 5-Pin Printed Circuit Board (PCB) Connector |
Setting and Monitoring |
N/A PC Connection with Universal Serial Bus (USB) 2.0 Micro Type Connector (Comprehensive Device Management Program, DAQMaster) |
Weight |
N/A 0.2 lb |
