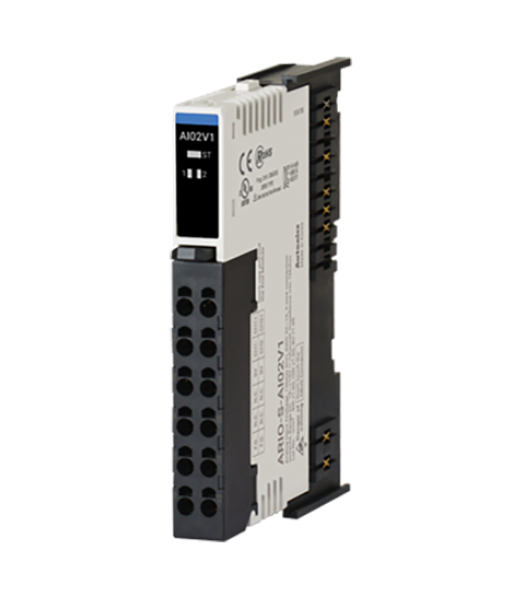

Slim Remote I/O, I/O Module, 2 ch Analog Voltage Input, Range:-10 to 10VDC
Unit of Measure
Specifications
Environment Ambient Temperature |
N/A -10 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 70 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Korean Certification (KC) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Terminal Material |
N/A Polyamide 6 |
Body Material |
N/A Modified Polyphenylene Oxide |
Base Material |
N/A Polyamide 6 Polyoxymethylene |
Approximate Packaged Weight |
N/A 108 g |
Approximate Weight |
N/A 75 g |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A 100 MΩ |
Note for Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A I/O to Inner Circuit: Photocoupler Insulated, Between Channels: Non-insulated |
Resolution |
N/A 12 bits |
Mounting Type |
N/A DIN Rail Mounting |
Maximum Power Direct Current (DC) Voltage (ABUS) |
N/A 5 V |
Input/Output (I/O) Method |
N/A Voltage Input |
Direct Current (DC) Input/Output (I/O) Voltage Range |
N/A -10 ~ 10 V |
Full Scale Accuracy at Room Temperature |
N/A ±0.3 % |
Full Scale Accuracy out of Room Temperature |
N/A ±0.6 % |
Minimum Input impedance |
N/A 1 MΩ |
Status Indicator ON Conditions |
N/A Below -1 V or Over 1 V |
Maximum Power Consumption (Input/Output (I/O)) |
N/A 0.5 W |
Maximum Power Current (Input/Output (I/O)) |
N/A 100 mA |
Weight |
N/A 0.2 lb |
