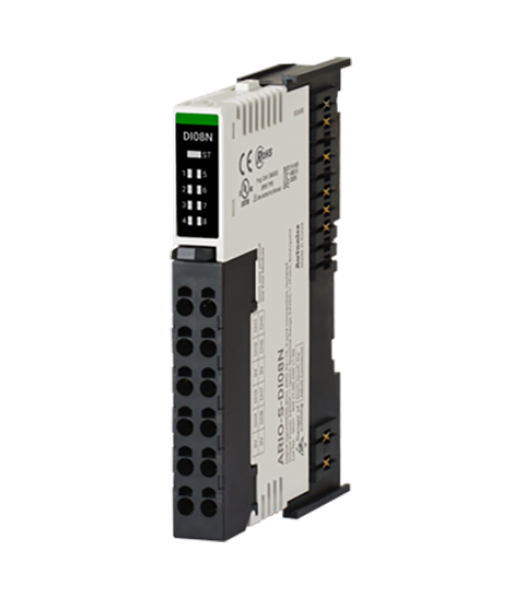

Slim Remote I/O, I/O Module, 8 ch Digital input NPN
Unit of Measure
Specifications
Environment Ambient Temperature |
N/A -10 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 70 ºC |
Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) Korean Certification (KC) Underwriters Laboratory for Canada and United States (cULus) Listed |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Terminal Material |
N/A Polyamide 6 |
Body Material |
N/A Modified Polyphenylene Oxide |
Base Material |
N/A Polyamide 6 Polyoxymethylene |
Approximate Packaged Weight |
N/A 108 g |
Approximate Weight |
N/A 75 g |
Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A 100 MΩ |
Note for Insulation Resistance (At 500 Volt (V) Direct Current (DC) Voltage Megger Basis) |
N/A I/O to Inner Circuit: Photocoupler Insulated, Between Channels: Non-insulated |
Minimum Input Direct Current (DC) Voltage (Turn ON) |
N/A 7 V |
Maximum Input Direct Current (DC) Voltage (Turn OFF) |
N/A 0.4 V |
Mounting Type |
N/A DIN Rail Mounting |
Input/Output (I/O) Common |
N/A Negative Positive Negative (NPN) |
Direct Current (DC) Input/Output (I/O) Signal Level |
N/A 24 V |
Tolerance for Direct Current (DC) Input/Output (I/O) Signal Level |
N/A ±10 % |
Maximum On Delay Time |
N/A 0.5 ms |
Maximum Off Delay Time |
N/A 1.5 ms |
Maximum Power Consumption (ABUS) |
N/A 0.9 W |
Maximum Power Current (ABUS) |
N/A 180 mA |
Maximum Input/Output (I/O) Current Consumption per Channel (4 Channel) |
N/A 6 mA |
Maximum Input/Output (I/O) Current Consumption per Channel (8 Channel) |
N/A 6 mA |
Weight |
N/A 0.2 lb |
