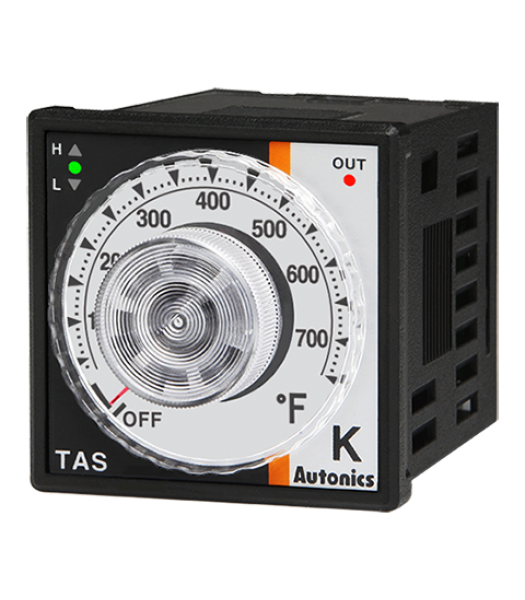

Temp Control, 1/16 DIN, Analog, PID Control, SSR Output, K Thermocouple, 32 to 752 F, 100-240 VAC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Dimensions |
N/A 48 x 48 mm (8 pin plug type) |
Alternating Current (AC) Voltage |
N/A 100 to 240 V |
Frequency |
N/A 50 Hz60 Hz |
Control Method |
N/A On/Off and PID Control combined |
Sampling Cycle |
N/A 100 ms |
Control Output |
N/A SSR voltage output |
Approval |
N/A Canadian and US Standards by Underwriters' Laboratories (CURUS) European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 50 ºC |
Environment Storage Temperature |
N/A -20 to 60 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Display Method |
N/A Non-display |
Thermocouple Input Specification |
N/A K(CA) |
Type |
N/A Analog |
Insulation Type |
N/A Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV) |
Temperature Range |
N/A 32 to 752 ºF |
Size |
N/A DIN W48×H48mm |
Temperature Unit |
N/A ºF |
Setting Range |
N/A 32 to 752 ºF |
Setting Type |
N/A Dial Setting |
Setting Accuracy |
N/A F.S. ±2%(Room Temperature 23℃±5℃) |
Sensor Input Type |
N/A T.C: K(CA) |
Unit |
N/A F |
Shipping Weight |
N/A 69 g |
Unit Weight |
N/A 107 g |
Weight |
N/A 0.37 lb |
Note |
N/A
8-pin socket (PG-08, PS-08(N)) is sold separately. Setting accuracy: Below 100 ? model is F.S. ±3% Below 100? model is F.S. ±4%, Over 100? model is F.S. ±3% The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
