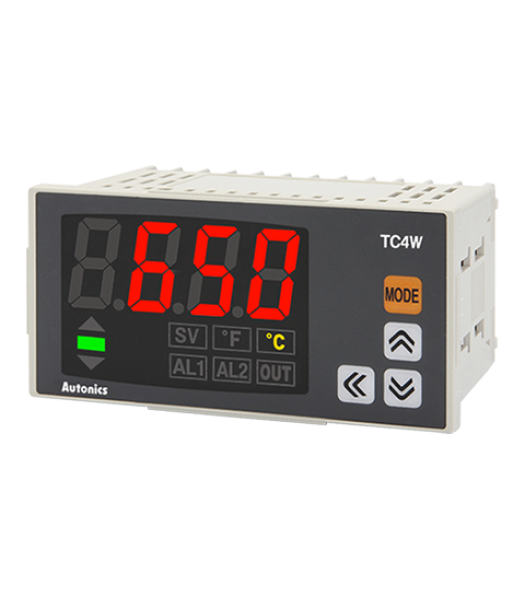

Temp Indicator, DIN W96 X H48mm, Single display 4 Digit, PID Control, without control output, No…
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Width

 N/A 96 mm

Height

 N/A 48 mm

Dimensions

 N/A 96 x 48 mm

Alternating Current (AC) Voltage

 N/A 100 to 240 V

Frequency

 N/A 50 Hz60 Hz

Control Method

 N/A On/Off Control P PD PI PID Control

Sampling Cycle

 N/A 100 ms

Control Output

 N/A Indicator

Approval

 N/A Canadian and US Standards by Underwriters' Laboratories (CURUS) European Conformity (CE)

Environment Ambient Temperature

 N/A -10 to 50 ºC

Environment Storage Temperature

 N/A -20 to 60 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Environment Storage Relative Humidity (RH)

 N/A 35 to 85 %

Display Method

 N/A 4-Digit 7-Segment Light Emitting Diode (LED)

Thermocouple Input Specification

 N/A J(IC) K(CA) L(IC)

Resistance Temperature Detector (RTD) Input Specification

 N/A Cu50Ω DPt100Ω

Proportional Band

 N/A 0.1 to 999.9ºC/ºF

Integral Time Range

 N/A 0 to 9999 s

Derivative Time

 N/A 0 to 9999 s

Control Period

 N/A 0.5 to 120.0 s

Type

 N/A Economical Single Display

Alarm Output

 N/A No alarm

Insulation Type

 N/A Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)

Display Accuracy Resistance Temperature Detector (RTD)

 N/A
  • At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  • Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit

Display Accuracy Thermocouple

 N/A
  • At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  • Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit

Hysteresis (Adjustable Sensitivity)

 N/A 1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable

Manual Reset

 N/A 0.0 to 100.0%

Size

 N/A DIN W96×H48mm

Shipping Weight

 N/A 122 g

Unit Weight

 N/A 194 g

Weight

 N/A 0.29 lb

Note

 N/A
  • Display accuracy: Thermocouple L(IC) type, RTD Cu50?
  • At room temperature (23? ±5?): (PV ±0.5% or ±2?, select the higher one) ±1-digit
  • Out of room temperature range: (PV ±0.5% or ±3?, select the higher one) ±1digit
  • In case of TC4SP Series, ±1? will be added.
  • The weight includes packaging. The weight in parenthesis is for unit only.
  • Environment resistance is rated at no freezing or condensation.
