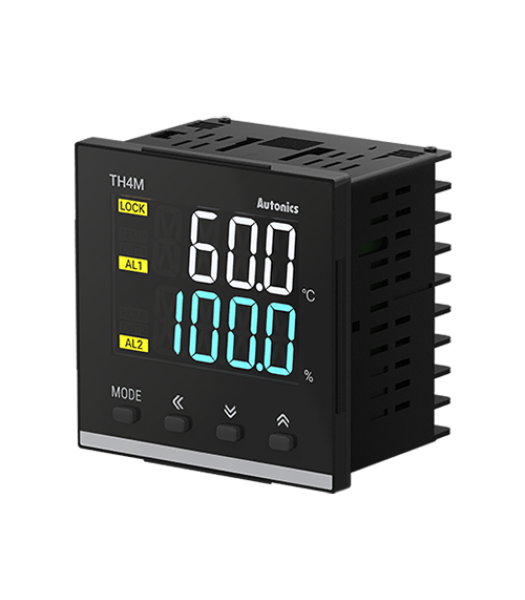

Temp /Humidity Control, Relay Output1 Temp, Relay Output2 Humidity, 1Alam Temp, 1Alam Humidity, 100-240VAC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Alternating Current (AC) Voltage |
N/A 100 to 240 V |
Frequency |
N/A 50 Hz60 Hz |
Control Method |
N/A On/Off Control |
Sampling Cycle |
N/A 1 s |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 50 ºC |
Environment Storage Temperature |
N/A -20 to 60 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Display Method |
N/A 11-Segment (Temperature: White, Humidity: Blue), Other Display (Yellow) Liquid-crystal Display (LCD) Type |
Power Consumption |
N/A 8 |
Insulation Type |
N/A Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV) |
Display Accuracy Temperature |
N/A
|
Display Accuracy Humidity |
N/A At Room Temperature (25 ℃ ±5 ℃): ≤ ±3.0%RH (20 to 90%RH ) |
Display Range Temperature |
N/A -20.0 to 60.0 ºC |
Display Relative Humidity (RH) Range |
N/A 10.0 to 100.0 |
Using Temperature Range |
N/A -20.0 to 60.0 ºC |
Using Relative Humidity (RH) Range |
N/A 10.0 to 100.0 % |
Control Output Temperature (OUT1) |
N/A Relay: 250 VAC - 3 A |
Control output Relative Humidity (RH) (OUT2) |
N/A Relay: 250 VAC to 3 A |
Alarm Output Relay |
N/A AL1/2: 250 VAC to 3 A, 1a |
Body Weight |
N/A 144 g |
