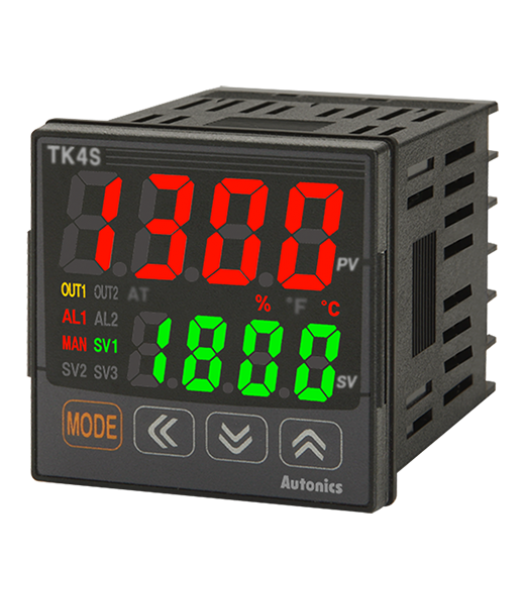

Temp Control, 1/16 DIN, 1 Alarm, Current or SSR Drive Output 1, Relay Contact Output 2, 100-240V…
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Dimensions

 N/A 48 x 48 mm

Alternating Current (AC) Voltage

 N/A 100 to 240 V

Frequency

 N/A 50 Hz60 Hz

Control Method

 N/A On/Off Control P PD PI PID Control

Sampling Cycle

 N/A 50 ms

Protection Structure

 N/A Ingress Protection (IP) 65 (Front Panel)

Control Output

 N/A Current Output (DC 4 to 20mA)+SSR Voltage Output

Approval

 N/A Canadian and US Standards by Underwriters' Laboratories (CURUS) European Conformity (CE)

Environment Ambient Temperature

 N/A -10 to 50 ºC

Environment Storage Temperature

 N/A -20 to 60 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Environment Storage Relative Humidity (RH)

 N/A 35 to 85 %

Display Method

 N/A 4-Digit 7-Segment Light Emitting Diode (LED)

Thermocouple Input Specification

 N/A B(PR) C(TT) E(CR) G(TT) J(IC) K(CA) L(IC) N(NN) Platinel II R(PR) S(PR) T(CC) U(CC)

Resistance Temperature Detector (RTD) Input Specification

 N/A Cu100Ω Cu50Ω DPt100Ω DPt50Ω JPt100Ω Nickel 120Ω

Analog Input Specification

 N/A 0 to 100mV 0 to 10V 0 to 20mA 0 to 5V 1 to 5V 4 to 20mA

Proportional Band

 N/A 0.1 to 999.9ºC/ºF(0.1 to 999.9%)

Integral Time Range

 N/A 0 to 9999 s

Derivative Time

 N/A 0 to 9999 s

Relay Output Control Period

 N/A 0.1 to 120.0 s

SSR Output Control Period

 N/A 1.0 to 120.0 s

Type

 N/A High Accuracy

Option Output

 N/A Alarm 1

Alarm Output

 N/A Alarm1

Insulation Type

 N/A Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)

Control Output 1

 N/A Current (DC0/4 to 20mA) or SSR Drive(11VDC) [ON/OFF]

Display Accuracy Resistance Temperature Detector (RTD)

 N/A
  • At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digit
  • Out of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit

Display Accuracy Thermocouple

 N/A
  • At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digit
  • Out of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit

Analog Display Accuracy

 N/A
  • At room temperature(23ºC±5ºC): ±0.3% F.S. ±1-digit
  • Out of range of room temperature: ±0.5ºC% F.S. ±1-digit

CT Input Display Accuracy

 N/A ±5% F.S. ±1-Digit

Hysteresis (Adjustable Sensitivity)

 N/A RTD/Thermocouples: 1 to 100ºC/ºF(0.1 to 100.0ºC/ºF) Variable Analog: 1 to 100-Digit

Manual Reset

 N/A 0.0 to 100.0%

Option Input

 N/A CT, Digital(DI-1)

Shipping Weight

 N/A 105 g

Unit Weight

 N/A 150 g

Weight

 N/A 0.45 lb

Note

 N/A S" represents SSR drive output support models which SSRP function (standard ON/OFF control, cycle control, phase control) are available. "C" represents selectable current and SSR drive output support models.
Select "R" or "C" type in case of using heating and cooling control and "N" type in case of using standard control.
Does not support in AC/DC voltage type model.
CT input of TK4N is available only for the standard model which has alarm output 1.
Display accuracy:
At room temperature (23?±5?)
  • Thermocouple K, J, T, N, E type, below -100?/Thermocouple L, U, PL? type, RTD Cu50?, DPt50?: (PV ±0.3% or ±2?, select the higher one) ±1-digit
  • Thermocouple C, G, R, S type, below 200?: (PV ±0.3% or ±3?, select the higher one) ±1-digit
  • Thermocouple B type, below 400?: there is no accuracy standards.
Out of room temperature range
  • RTD Cu50?, DPt50?: (PV ±0.5% or ±3?, select the higher one) ±1-digit
  • Thermocouple R, S, B, C, G type: (PV ±0.5% or ±5?, select the higher one) ±1-digit
  • Others, Below -100?: within ±5?
In case of TK4SP Series, ±1? will be added to the degree standard.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
