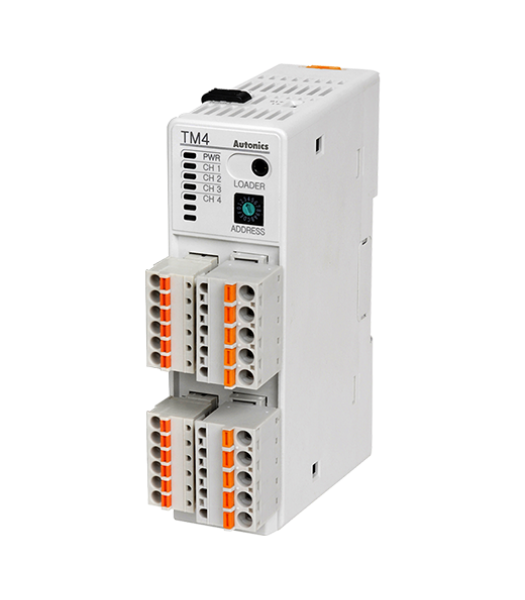

4 channel module, PID temp.controller, SSR Control output, Basic module( Power/ Communication te…
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Dimensions |
N/A 30 x 100 x 84.8 mm |
Direct Current (DC) Voltage |
N/A 24 V |
Control Method |
N/A On/Off Control P PD PI PID Control |
Sampling Cycle |
N/A 100 ms |
Note for Sampling Cycle |
N/A (4-CH synchronous sampling) |
Control Output |
N/A SSR voltage output |
Approval |
N/A Canadian and US Standards by Underwriters' Laboratories (CURUS) European Conformity (CE) Korea Certification (KC) |
Environment Ambient Temperature |
N/A -10 to 50 ºC |
Environment Storage Temperature |
N/A -20 to 60 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Display Method |
N/A Non-display |
Thermocouple Input Specification |
N/A B(PR) C(TT) E(CR) G(TT) J(IC) K(CA) L(IC) N(NN) Platinel II R(PR) S(PR) T(CC) U(CC) |
Resistance Temperature Detector (RTD) Input Specification |
N/A DPt100Ω JPt100Ω |
Proportional Band |
N/A 0.1 to 999.9ºC/ºF |
Integral Time Range |
N/A 0 to 9999 s |
Derivative Time |
N/A 0 to 9999 s |
Relay Output Control Period |
N/A 0.1 to 120.0 s |
SSR Output Control Period |
N/A 1.0 to 120.0 s |
Type |
N/A Multi Channel Module |
Option Output |
N/A RS485 Communication |
Insulation Type |
N/A Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv) |
Hysteresis (Adjustable Sensitivity) |
N/A 1 to 100ºC/ºF(0.1 to 100ºC/ºF) variable |
Manual Reset |
N/A 0.0 to 100.0% |
Number of Input Channels |
N/A 4-Channel |
Thermocouple Measurement Accuracy |
N/A (PV ±0.5% or ±1℃, Select the Higher One) ±1-Digit Max. |
RTD Measurement Accuracy |
N/A (PV ±0.5% or ±1℃, Select the Higher One) ±1-Digit Max. |
Module Type |
N/A Basic Module |
Channel |
N/A 4 channel |
Shipping Weight |
N/A 174 g |
Unit Weight |
N/A 239 g |
Weight |
N/A 0.57 lb |
Accessories |
N/A Expansion Connector: 1 Power/Comm. Connector: 1 |
Note |
N/A
The expansion module does not supply power/comm. terminal. Order it with the basic module. In case of thermocouple K, J, E, T, N, it is below -100? and L, U, Platinel II, it is below ±2? ±1-digit. In case of thermocouple B, display accuracy cannot be ensured under 400?. In case of thermocouple R, S, it is below 200? and C, G, it is max. 3? ±1-digit. Influence of temperature: Applied when it is for out of room temperature (23±5?) range. The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
