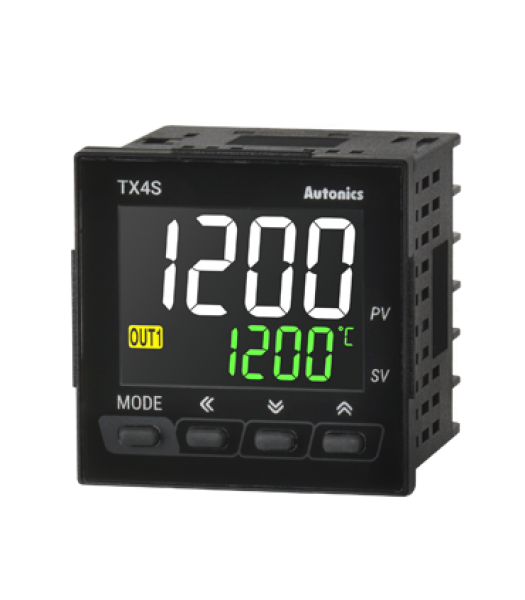

Temp Control, 1/16 DIN, LCD display 4 Digit, PID Control, Selectable Current output or SSR drive…
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Dimensions

 N/A 48 x 48 mm

Alternating Current (AC) Voltage

 N/A 100 to 240 V

Frequency

 N/A 50 Hz60 Hz

Control Method

 N/A On/Off Control P PD PI PID Control

Sampling Cycle

 N/A 50 ms

Protection Structure

 N/A Ingress Protection (IP) 50 (Front Panel)

Control Output

 N/A Current Output (DC 4 to 20mA)+SSR Voltage Output

Approval

 N/A Canadian and US Standards by Underwriters' Laboratories (CURUS) European Conformity (CE) Korea Certification (KC)

Environment Ambient Temperature

 N/A -10 to 50 ºC

Environment Storage Temperature

 N/A -20 to 60 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Environment Storage Relative Humidity (RH)

 N/A 35 to 85 %

Display Method

 N/A 4-Digit 11-Segment Liquid Crystal Display (LCD)

Thermocouple Input Specification

 N/A J(IC) K(CA) L(IC) R(PR) S(PR) T(CC)

Resistance Temperature Detector (RTD) Input Specification

 N/A Cu50Ω DPt100Ω

Proportional Band

 N/A 0.1 to 999.9ºC/ºF

Integral Time Range

 N/A 0 to 9999 s

Derivative Time

 N/A 0 to 9999 s

Control Period

 N/A 0.5 to 120.0 s

Type

 N/A Liquid Crystal Display (LCD)

Option Output

 N/A Alarm 1/2, Transmission(DC4-20mA)

Insulation Type

 N/A Double Insulation (Dielectric Strength Between Primary Circuit and Secondary Circuit: 3kV)

Display Accuracy Resistance Temperature Detector (RTD)

 N/A
  • At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digit
  • Out of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit

Display Accuracy Thermocouple

 N/A
  • At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digit
  • Out of room temperature:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit

Hysteresis (Adjustable Sensitivity)

 N/A 1 to 100ºC/ºF(0.1 to 50.0ºC/ºF) variable

Manual Reset

 N/A 0.0 to 100.0%

Shipping Weight

 N/A 86.7 g

Unit Weight

 N/A 146.1 g

Weight

 N/A 1 lb

Note

 N/A When using the unit at low temperature (below 0?), display cycle is slow. Control output operates normally.
At room temperature(23?±5?)
TC R(PR), S(PR) , below 200?: (PV ±0.5% or ±3?, select the higher one) ±1-digit, over 200?: (PV ±0.5% or ±2?, select the higher one) ±1-digit
TC L(IC), RTD Cu50?: (PV ±0.5% or ±2?, select the higher one) ±1-digit
Out of room temperature range
TC R(PR), S(PR): (PV ±1.0% or ±5?, select the higher one) ±1-digit
TC L(IC), RTD Cu50?: (PV ±0.5% or ±3?, select the higher one) ±1-digit
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
