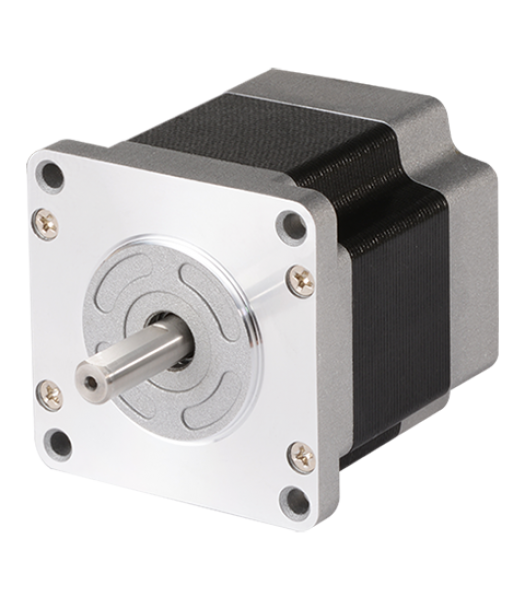

Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Basic Step Angle (Full) |
N/A 0.72 º |
Basic Step Angle (Half) |
N/A 0.36 º |
Maximum Holding Torque |
N/A 4.2 kgf·cm |
Rotor Moment of Inertia |
N/A 175 g/cm² |
Winding Resistance |
N/A 0.8 Ω |
Rated Phase Current |
N/A 1.4 A |
Motor Length |
N/A 48 mm |
Shaft Type |
N/A Single shaft |
Wire Connection |
N/A Pentagon |
Protection Structure |
N/A Ingress Protection (IP) 30 |
Approval |
N/A European Conformities (CE) |
Electromagnetic Brake Rated Excitation Direct Current (DC) Voltage |
N/A 24VDC at equals ±10%(no-polarity) V |
Rated Excitation Direct Current (DC) Voltage |
N/A 24 V |
Rated Excitation Direct Current (DC) Voltage Tolerance (±) (No Polarity) |
N/A 10 % |
Rated Excitation Current |
N/A 0.33 A |
Minimum Static Friction Torque |
N/A 8 kgf·cm |
Rotation Part Inertia Moment |
N/A 29 x 10-7 kgf.cm² |
B Type Brake |
N/A Power off: Brake is Operating Power on: Brake is Released |
Maximum Operating Time |
N/A 25 ms |
Maximum Releasing Time |
N/A 20 ms |
Shipping Weight |
N/A 0.85 kg |
Unit Weight |
N/A 0.6 kg |
Motor Shaft |
N/A Single Shaft |
Frame Size |
N/A 60 mm |
Motor Type |
N/A Shaft with Brake Built-in |
Rated Current per Phase |
N/A 1.4 A |
Rotor Inertia |
N/A 175 g.cm |
Resistance per Phase |
N/A 0.8 Ω |
Weight |
N/A 1.54 lb |
