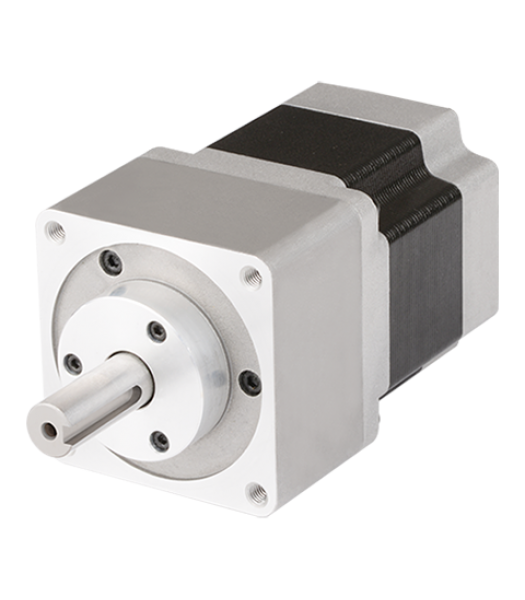

Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Basic Step Angle (Full) |
N/A 0.072 º |
Basic Step Angle (Half) |
N/A 0.036 º |
Rotor Moment of Inertia |
N/A 280 g/cm² |
Winding Resistance |
N/A 1.1 Ω |
Rated Phase Current |
N/A 1.4 A |
Motor Length |
N/A 94.5 mm |
Shaft Type |
N/A Dual Shaft |
Reduction Ratio |
N/A 1:10 |
Wire Connection |
N/A Pentagon |
Protection Structure |
N/A Ingress Protection (IP) 30 |
Approval |
N/A European Conformities (CE) |
Allowable Speed Range |
N/A 0 to 180 rpm |
Backlash |
N/A ±20 in0.33 º |
Electromagnetic Brake Rated Excitation Direct Current (DC) Voltage |
N/A 24VDC at equals ±10%(no-polarity) V |
Rated Excitation Direct Current (DC) Voltage |
N/A 24 V |
Rated Excitation Direct Current (DC) Voltage Tolerance (±) (No Polarity) |
N/A 10 % |
Rated Excitation Current |
N/A 0.33 A |
Minimum Static Friction Torque |
N/A 8 kgf·cm |
Rotation Part Inertia Moment |
N/A 29 x 10-7 kgf.cm² |
B Type Brake |
N/A Power off: Brake is Operating Power on: Brake is Released |
Maximum Operating Time |
N/A 20 ms |
Maximum Releasing Time |
N/A 25 ms |
Absolute Positon Error |
N/A ±20 in0.33 º |
Lost Motion |
N/A ±20 in0.33 º |
Shipping Weight |
N/A 1.57 kg |
Unit Weight |
N/A 1.3 kg |
Basic Step Angle |
N/A 0.072 A |
Motor Shaft |
N/A Dual Shaft |
Frame Size |
N/A 60 mm |
Motor Type |
N/A Geared with Brake Built-in |
Rated Current per Phase |
N/A 1.4 A |
Rotor Inertia |
N/A 280 g.cm |
Resistance per Phase |
N/A 1.1 Ω |
Maximum Allowable Torque |
N/A 50 kgf.cm |
Allowable Angle |
N/A 0 to 180 |
Gear Ratio |
N/A 1:10 |
Weight |
N/A 3.09 lb |
