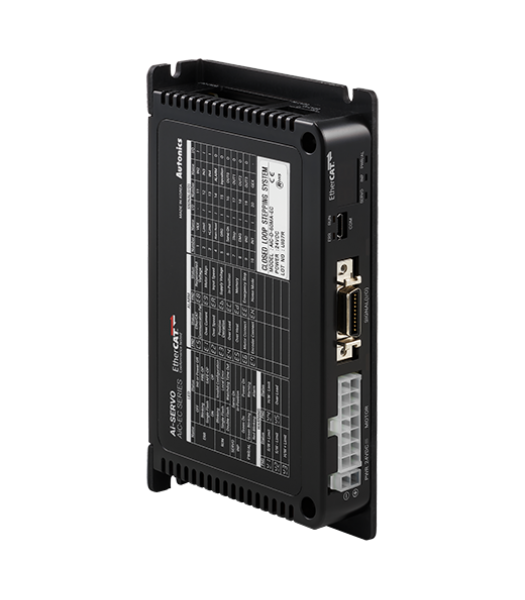

EtherCAT 2Phase Closed-loop Stepper Driver, 3.5A/Phase, 24VDC, ( Req. Ai-M-56MA-V2 Motor )
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Resolution |
N/A 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR |
Driver Direct Current (DC) Voltage Power Supply |
N/A 24 V |
Maximum Driver Run Current Per Phase |
N/A 3.5 A |
Driver Protection Structure |
N/A Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard) |
Driver Applied Motor |
N/A 2-phase closed loop stepper motor |
Frame Size |
N/A 56 |
Driver Maximum Power Consumption |
N/A 120 W |
Driver Approval |
N/A European Conformities (CE) Korean Certification Restriction of Hazardous Substances (RoHS) |
Motor Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Motor Environment Storage Relative Humidity (RH) |
N/A 10 to 90 % |
Motor Approximate Weight |
N/A 350 kg500 kg |
Comments |
N/A No Data, only one line description |
