Unit of Measure

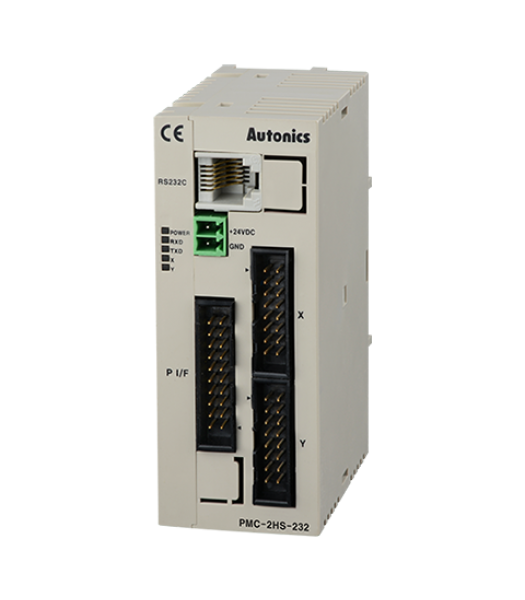

Specifications
Brands |
N/A Autonics USA |
Type |
N/A Independent Type |
Input and Output Contact |
N/A Parallel I/F: 13/4 X-Axis: 8/5 (General: 0/1) Y-Axis: 8/5 (General: 0/1) |
Operation Mode |
N/A CONTINUOUS INDEX JOG Program (64-step) |
In-Position Setting |
N/A Absolute Incremental |
Direct Current (DC) Voltage |
N/A 24 V |
Environment Ambient Temperature |
N/A 0 to 45 ºC |
Approval |
N/A European Conformity (CE) Korean Certification (KC) |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Common Accessories |
N/A Compact Disc (CD) User Manual |
Approximate Weight |
N/A 100.2 g393.6 g |
Weight |
N/A 0.4 lb |
Communication Protocol |
N/A Autonics Protocol RS232C |
Drive Speed |
N/A 1 pps to 4 Mpps |
Connection Method |
N/A RS232C |
Control Axis |
N/A 2 |
Output for Common |
N/A 2 Point |
Index Step Numbers Per Axis |
N/A 64 |
Inposition Range |
N/A -8,388,608 to 8,388,607 |
Note for Inposition Range |
N/A Supports pulse scaling function |
Drive Speed Numbers |
N/A 1 pps to 4 Mpps (1 to 8,000 × Magnification 1 to 500) |
Accessories
Power Connector |
N/A [CN1] MC1, 5/2-ST-3.5 (Phonix): 1 |
RS232C Connector |
N/A [CN2] RS-232C Communication Cable (1.5 meter (m)): 1 |
P Interface (I/F) Connector |
N/A [CN3] 20P mil Standard, 2.54 Millimeter (mm) Connector: 1 |
X Axis Input/Output Connector |
N/A [CN4] 16P mil Standard, 2.54 Millimeter (mm) Connector: 1 (In Case of 2HS, Using 2) |
Y Axis Input/Output Connector |
N/A [CN5] 16P mil Standard, 2.54 Millimeter (mm) Connector: 1 |
