Unit of Measure

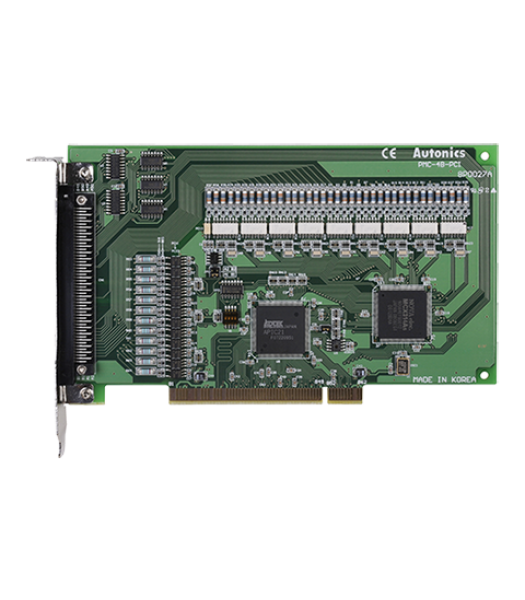

Specifications
Brands |
N/A Autonics USA |
Type |
N/A Board Type |
Main Features |
N/A Constant Linear Velocity S-Shaped Acceleration/Deceleration Synchronized Operation |
Input and Output Contact |
N/A X, Y, Z, U-Axis: 15/8 (General: 0/4) |
Interpolations |
N/A 2/3-axis bit pattern interpolation, constant interpolation 2/3-axis linear interpolation, arc interpolation |
Operation Mode |
N/A User Programming |
In-Position Setting |
N/A Absolute Incremental |
Direct Current (DC) Voltage |
N/A 24 V |
Environment Ambient Temperature |
N/A 0 to 45 ºC |
Environment Ambient Storage Temperature |
N/A -10 to 55 ºC |
Approval |
N/A European Conformity (CE) Korean Certification (KC) |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Ambient Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Approximate Weight |
N/A 100.4 g654.4 g |
Weight |
N/A 1.2 lb |
Communication Protocol |
N/A Peripheral Component Interconnect (PCI) Bus |
Drive Speed |
N/A 1 pps to 4 Mpps |
Connection Method |
N/A Peripheral Component Interconnect (PCI) Slot |
Applied Library |
N/A C Programming Language (Provided DLL) LabView |
2/3-Axis Linear Interpolation Range for Each Axis |
N/A -2 147 483 647 648 to 2 |
2/3-Axis Linear Interpolation Speed |
N/A 1 pps to 4 Mpps |
Maximum Lower Side Band (LSB) 2/3-Axis Linear within All Interpolation Range Position Accuracy (±) |
N/A 0.5 |
Circular Interpolation Range for Each Axis |
N/A -2 147 483 647 648 to 2 |
Circular Interpolation Speed |
N/A 1 Pixels Per Second (pps) to 4 MegaPixels Per Second (Mpps) |
Maximum Lower Side Band (LSB) Circular within All Interpolation Range Position Accuracy (±) |
N/A 1 |
Control Axis |
N/A 4 |
