Unit of Measure

Specifications

Brands

 N/A Autonics USA

Sensing Distance

 N/A 40 mm

Environment Ambient Temperature

 N/A -40 to 70 ºC

Minimum Sensing Target Diameter

 N/A 0.03 mm

Type

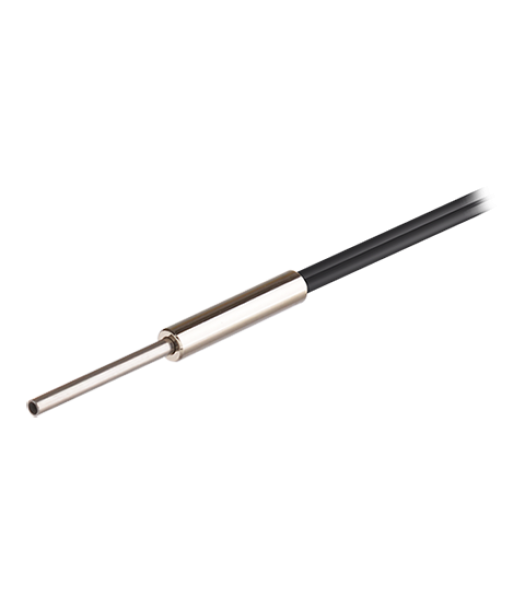

 N/A Cylinder+SUS Type (SUS Length 15 mm)

Allowable Bend Radius

 N/A 15R (SUS Part 10R)

Free Cut

 N/A Yes

Adapter

 N/A Yes

Weight

 N/A 0.22 lb

Fiber Optic Cable

Sensing Type

 N/A Diffuse

Head Form

 N/A Cylinder + SUS (Length 90 mm)

Hood Diameter

 N/A 3 mm

Cable Length

 N/A 2 m

Cable Type

 N/A Standard

Fiber Diameter

 N/A 0.5 mm

Note

Note

 N/A
  • The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
  • Minimum sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
  • Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.
  • Glass type is for BF5, BF4 Series.
