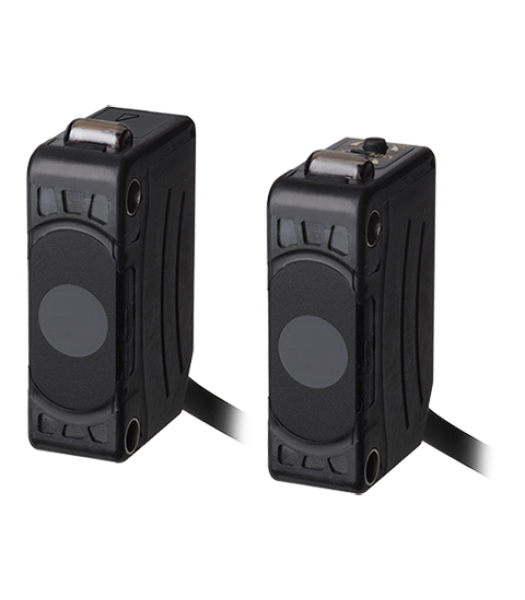

Sensor, Photo, Through beam, 15m Sensing distance, Light & Dark On, PNP Output, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Sensing Type |
N/A Through Beam |
Sensing Distance |
N/A 15 m |
Sensing Target |
N/A Opaque material of minimum diameter 12 mm |
Light Source |
N/A Infrared Light Emitting Diode (LED) |
Light Source Wavelength |
N/A 850 nm |
Maximum Operation Response Time |
N/A 1 ms |
Maximum Current Consumption |
N/A 20 mA |
Sensitivity Adjustment |
N/A Sensitivity Adjuster |
Operation Mode |
N/A Dark On Light On |
Control Output |
N/A Negative Positive Negative (NPN) |
Cable Diameter |
N/A 3.5 mm |
Cable Length |
N/A 2 m |
Maximum Environment Ambient Illumination (Sunlight) |
N/A 11000 lux |
Maximum Environment Ambient Illumination (Incandescent Lamp Received Illumination) |
N/A 3000 lx |
Environment Ambient Temperature |
N/A -25 to 55 ºC |
Environment Ambient Storage Temperature |
N/A -40 to 70 ºC |
Protection Structure |
N/A Ingress Protection (IP) 65 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Case Material |
N/A Polycarbonate+Acrylonitrile Butadiene Styrene |
Plate Material |
N/A Nickel (Ni) |
Light Emitting Diode (LED) Cap Material |
N/A Polycarbonate |
Sensing Part Material |
N/A Polymethyl Methacrylate |
Bracket Material |
N/A SUS304c (Steel use stainless 304) |
Bolt Material |
N/A Steel Chromium Molybdenum |
Nut Material |
N/A Steel Chromium Molybdenum |
Sleeve Material |
N/A Brass |
Common Accessories |
N/A Adjuster Driver Fixing Bracket M3 Bolts: 4 M3 Nuts: 4 |
Type |
N/A Small Long Distance |
Weight |
N/A 0.37 lb |
Approximate Weight |
N/A 115 g |
Approximate Net Weight |
N/A 90 g |
