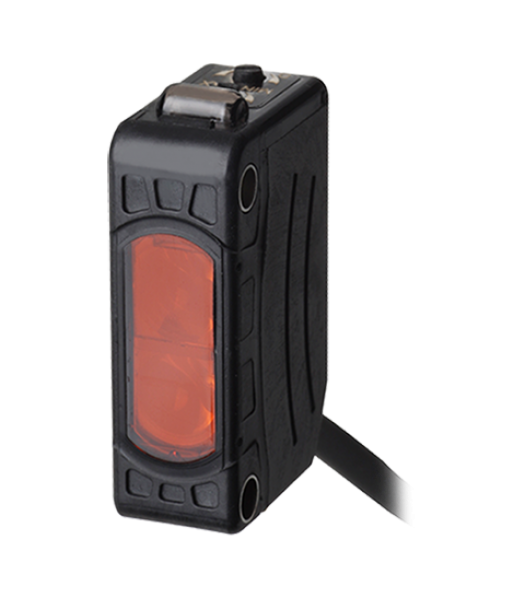

Sensor, Photo, Polarized Retro reflective, 3m Sensing distance , Light & Dark On, PNP Output
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Direct Current (DC) Voltage

 N/A 12 to 24 V

Sensing Type

 N/A Polarized Retroreflective

Sensing Distance

 N/A 3 m

Sensing Target

 N/A Opaque material of minimum diameter 75 mm

Light Source

 N/A Red Light Emitting Diode (LED)

Light Source Wavelength

 N/A 660 nm

Maximum Operation Response Time

 N/A 1 ms

Maximum Current Consumption

 N/A 30 mA

Sensitivity Adjustment

 N/A Sensitivity Adjuster

Operation Mode

 N/A Dark On Light On

Control Output

 N/A Positive Negative Positive (PNP)

Cable Diameter

 N/A 3.5 mm

Cable Length

 N/A 2 m

Maximum Environment Ambient Illumination (Sunlight)

 N/A 11000 lux

Maximum Environment Ambient Illumination (Incandescent Lamp Received Illumination)

 N/A 3000 lx

Environment Ambient Temperature

 N/A -25 to 55 ºC

Environment Ambient Storage Temperature

 N/A -40 to 70 ºC

Protection Structure

 N/A Ingress Protection (IP) 65

Approval

 N/A European Conformity (CE)

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Environment Storage Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Case Material

 N/A Polycarbonate+Acrylonitrile Butadiene Styrene

Plate Material

 N/A Nickel (Ni)

Light Emitting Diode (LED) Cap Material

 N/A Polycarbonate

Sensing Part Material

 N/A Polymethyl Methacrylate

Bracket Material

 N/A SUS304c (Steel use stainless 304)

Bolt Material

 N/A Steel Chromium Molybdenum

Nut Material

 N/A Steel Chromium Molybdenum

Sleeve Material

 N/A Brass

Common Accessories

 N/A Adjuster Driver Fixing Bracket M3 Bolts: 2 M3 Nuts: 2

Type

 N/A Small Long Distance

Individual Accessories

 N/A Reflector (MS-2A)

Weight

 N/A 0.29 lb

Approximate Weight

 N/A 85 g

Approximate Net Weight

 N/A 60 g

Note

Note

 N/A
  • The sensing distance is extended from 0.1 to 4m or 0.1 to 5m when using optional reflector MS-2S or MS-3S. When using reflective tapes, the reflectivity will vary by the size of the tape. Please refer to the "Reflectivity By Reflective Tape Model" table before using the tapes.
  • M8 connector cable is sold separately. (cable - AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator out diameter: Ø1.25mm)
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
  • The weight includes packaging. The weight in parenthesis is for unit only.
