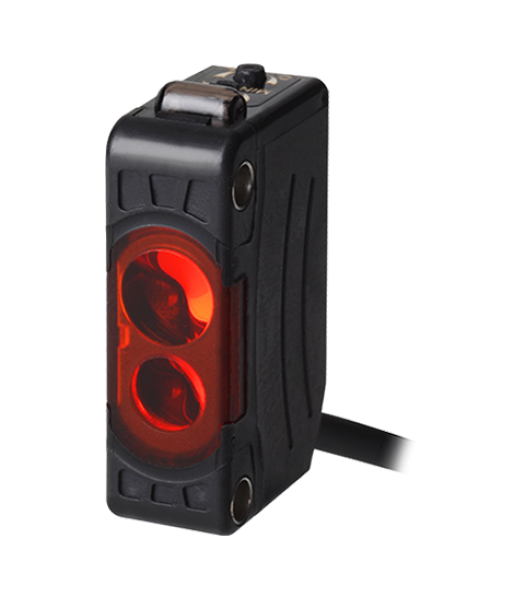

Sensor, Photo, Diffuse, 50 mm Sensing distance, Narrow spot beam for 0.2mm target, Light & Dark On, NPN Output, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Sensing Type |
N/A Diffuse Reflective (Micro Spot) |
Sensing Distance |
N/A 50 mm |
Light Source |
N/A Red Light Emitting Diode (LED) |
Light Source Wavelength |
N/A 650 nm |
Operation Mode |
N/A Dark On Light On |
Control Output |
N/A Negative Positive Negative (NPN) |
Maximum Environment Ambient Illumination (Sunlight) |
N/A 11000 lux |
Maximum Environment Ambient Illumination (Incandescent Lamp Received Illumination) |
N/A 3,000lx |
Type |
N/A Micro Spot |
Weight |
N/A 0.32 lb |
