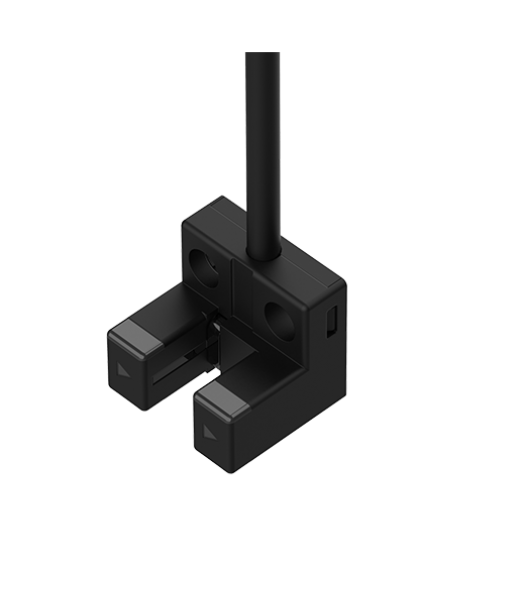

Photomicro Sensor, Light On, Cable Type, PNP Output, L-Type, 5-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Sensing Type |
N/A Through Beam |
Sensing Distance |
N/A 5 mm |
Sensing Target |
N/A Opaque |
Minimum Sensing Target Diameter |
N/A 0.8 x 1.8 mm |
Hysteresis (Distance) |
N/A 0.05 mm |
Maximum Response Time (Light On) |
N/A 20 µs |
Maximum Response Time (Dark On) |
N/A 100 µs |
Response Frequency |
N/A 2 kHz |
Light Source |
N/A Infrared Light Emitting Diode (LED) |
Peak Emission Wavelength |
N/A 940 nm |
Operation Mode |
N/A Light On/Dark On (Set by Control Wire) |
Indicator |
N/A Operation Indicator (Red Light Emitting Diode (LED)) |
Approval |
N/A European Conformity (CE) Underwriters Laboratory for Canada and United States (cULus) Listed |
Direct Current (DC) Voltage |
N/A 5 to 24 V |
Direct Current (DC) Voltage Tolerance (±) |
N/A 10 % |
Maximum P to P Ripple Factor |
N/A 10 % |
Approximate Weight |
N/A 50 g |
Maximum Current Consumption |
N/A 15 mA |
Control Output |
N/A Positive Negative Positive (PNP) Open Collector |
Direct Current (DC) Load Voltage |
N/A 24 V |
Maximum Load Current |
N/A 50 mA |
Direct Current (DC) Residual Voltage (Negative Positive Negative (NPN)) |
N/A 1.2 V |
Direct Current (DC) Residual Voltage Positive Negative Positive (PNP)) |
N/A 1.2 V |
Protection Circuit |
N/A Output Overcurrent (short-circuit) Protection Circuit Reverse Polarity Protection Circuit |
Insulation Resistance (At 250 Direct Current (DC) Voltage Megger) |
N/A 20 MΩ |
Noise Immunity |
N/A The square wave noise (pulse width: 1 µs) by the noise simulator ± 240 VDC |
Alternating Current (AC) Dielectric Strength at 50/60 Hertz (Hz) Frequency for 1 minute |
N/A 1000 V |
Vibration |
N/A 1.5 mm amplitude (maximum acceleration 196 m/s²) at frequency of 10 to 2,000 Hz in each X, Y, Z direction for 2 hours |
Shock in Each X, Y, Z Direction for 3 Times |
N/A 15,000 m/s² |
Approximate Shock in Each X, Y, Z Direction for 3 Times |
N/A 1500 g |
Maximum Environment Ambient Received Illumination (Fluorescent Lamp) |
N/A 1000 lux |
Environment Ambient Temperature |
N/A -20 to 55 ºC |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Protection Structure |
N/A Ingress Protection (IP) 50 (International Electrotechnical Commission (IEC) Standard) |
Connection Type |
N/A Cable |
Case Material |
N/A Polybutylene Terephthalate (PBT) |
Sensing Part Material |
N/A Polycarbonates (PC) |
Cable Diameter |
N/A 2.5 mm |
Number of Core |
N/A 4 |
Cable Length |
N/A 1 m |
Core Diameter |
N/A 0.08 mm |
Cable Core Size |
N/A 28 AWG |
Insulator Outer Diameter |
N/A 0.65 mm |
