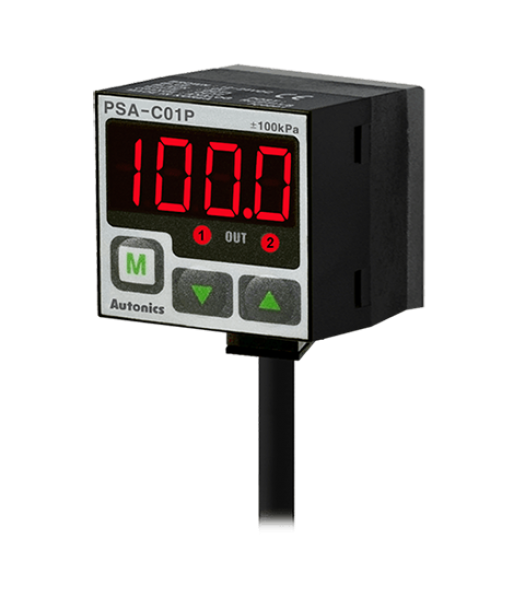

Sensor, Pressure, Compound Pressure, 3 1/2 Digit LED, -100 to 100kPa, 2 PNP/1-5 VDC Out, Port R
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Pressure Type |
N/A Compound |
Connection Type |
N/A Cable |
Cable Length |
N/A 2 m |
Environment Ambient Temperature |
N/A -10 to 50 ºC |
Environment Storage Temperature |
N/A -20 to 60 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 85 % |
Front Case Material |
N/A Polycarbonate (Insert Glass) |
Rear Case Material |
N/A Polycarbonate (Insert Glass) |
Pressure Port Material |
N/A Die-Cast (Zinc (Zn)) |
Applicable Fluid |
N/A (Pneumatic type) Air, Non-corrosive gas |
Pressure Port |
N/A RC(PT)1/8 |
Rated Pressure Range |
N/A -100.0 to 100.0 kPa |
Protection Structure |
N/A Ingress Protection (IP) 40 |
Approval |
N/A European Conformity (CE) |
Maximum Output Current |
N/A 50 mA |
Pressure Port Direction |
N/A Rear Fitting (3-Direction) |
Display Pressure Unit |
N/A bar inHg kgf/cm² kPa mmH2O mmHg psi |
Direct Current (DC) Output Voltage |
N/A 1 to 5 V |
Control Output Hysteresis |
N/A 2-Digit Fixed |
Control Output Repeat Error |
N/A ± 0.2% F.S. ± 2 - Digit |
Selectable Control Output Response Time |
N/A 100 ms2.5 ms5 ms500 ms |
Control Output Type |
N/A Positive Negative Positive (PNP) Open Collector |
Cable Type |
N/A Standard (Cable Integrated) |
Appearance |
N/A Square (30 mm x 30 mm) |
Shipping Weight |
N/A 200 g |
Unit Weight |
N/A 120 g |
Weight |
N/A 0.44 lb |
