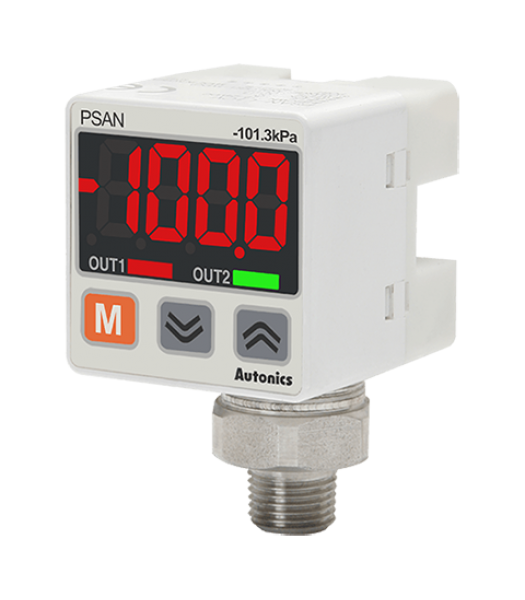

Pressure Sensor, Fluid type, Vacuum pressure, Connector Type, 0.0 to -101.3 kPa, NPN open collector
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Pressure Type |
N/A Vacuum |
Connection Type |
N/A Connector |
Cable Length |
N/A 2 m |
Environment Ambient Temperature |
N/A -10 to 50 ºC |
Environment Storage Temperature |
N/A -20 to 60 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 30 to 80 % |
Environment Storage Relative Humidity (RH) |
N/A 30 to 80 % |
Front Case Material |
N/A Polycarbonate (PC) |
Rear Case Material |
N/A Polyamide 6 |
Pressure Port Material |
N/A SUS304/SUS316L |
Applicable Fluid |
N/A (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L |
Pressure Port |
N/A R1/8 |
Rated Pressure Range |
N/A 0.0 to -101.3 kPa |
Protection Structure |
N/A Ingress Protection (IP) 40 |
Approval |
N/A European Conformity (CE) |
Maximum Output Voltage Current |
N/A 50 mA |
Maximum Output Current |
N/A 75 mA |
Pressure Port Direction |
N/A Bottom Fitting |
Display Pressure Unit |
N/A bar inHg kgf/cm² kPa mmH2O mmHg psi |
Input/Output Option |
N/A Hold/Auto Shift Input |
Control Output Hysteresis |
N/A Minimum Display Interval |
Control Output Repeat Error |
N/A ± 0.2% F.S. ± Minimum Display Interval |
Selectable Control Output Response Time |
N/A 100 ms1000 ms2.5 ms5 ms500 ms |
Control Output Type |
N/A Negative Positive Negative (NPN) Open Collector |
Control |
N/A Standard (Fluid) |
Cable Type |
N/A Hold/Auto Shift Input |
Shipping Weight |
N/A 173 g |
Unit Weight |
N/A 88 g |
Weight |
N/A 1 lb |
