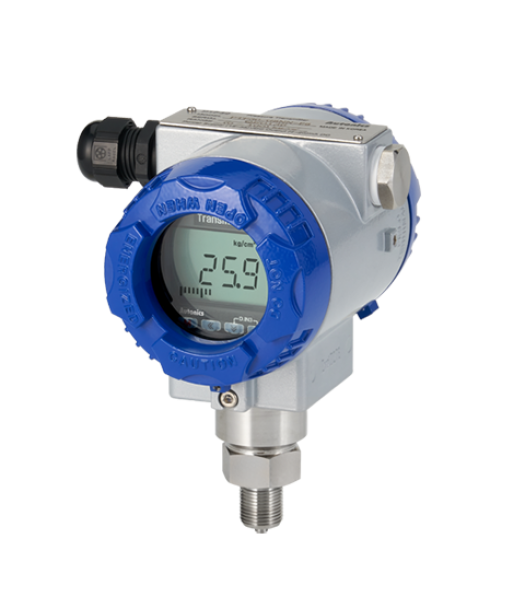

Standard Pressure Transmitter, Absolute Pressure, 0.00 to 2.00kgf/cm2, W Bracket, PF3/8"
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Transmitter Type |
N/A Absolute Pressure |
Direct Current (DC) Voltage |
N/A 15 to 35 V |
Environment Ambient Temperature |
N/A -20 to 70 ºC |
Environment Storage Temperature |
N/A -20 to 80 ºC |
Protection Structure |
N/A Ingress Protection (IP) 67 (International Electrotechnical Commission (IEC) Standard) |
Approval |
N/A European Conformity (CE) |
Environment Ambient Relative Humidity (RH) |
N/A 0 to 85 % |
Body Material |
N/A Aluminum (AlDc.8S) |
Cover O-Ring Material |
N/A Buna N |
Diaphragm Material |
N/A Stainless Steel 316 |
Connections material |
N/A Stainless Steel 316 |
Pressure Port Thread Type |
N/A PF |
Standard Pressure Port Size |
N/A 3/8 in |
Output Direct Current (DC) |
N/A 20 mA |
Number of Wires |
N/A 2 |
Low Limit Current |
N/A 3.6 mA |
Low Limit Tolerance (±) |
N/A -2.5 % |
High Limit Current |
N/A 21.6 mA |
High Limit Tolerance (±) |
N/A 10 % |
Pressure Range |
N/A 0.00 to 2.00 kgf/cm² |
Full Scale (FS) Accuracy (±) |
N/A 0.2 |
Measurement Pressure |
N/A Absolute |
Process Connection |
N/A With Bracket |
Explosion Class |
N/A Ex d IIC T6 |
Mounting Bracket |
N/A With Bracket |
Shipping Weight |
N/A 1.2 kg |
