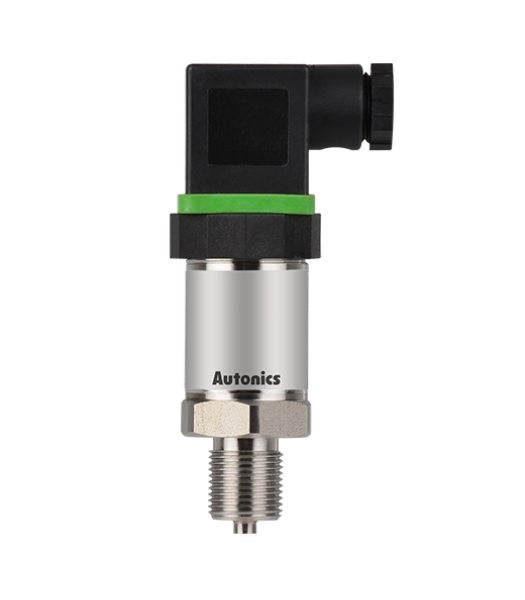

Pressure Transmitter, Gauge Pressure, Din connector type, 0.00 to 10.00kgf/cm2, PF3/8"
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Transmitter Type |
N/A Gauge Pressure |
Connection Type |
N/A German Institute for Standardization (DIN) Connector Type |
Direct Current (DC) Voltage |
N/A 15 to 35 V |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Storage Temperature |
N/A -10 to 70 ºC |
Approval |
N/A European Conformity (CE) |
Environment Ambient Relative Humidity (RH) |
N/A 5 to 95 % |
Environment Storage Relative Humidity (RH) |
N/A 5 to 95 % |
Sealing Material |
N/A Stainless Steel 316 |
Cover O-Ring Material |
N/A Fluoro Rubber |
Diaphragm Material |
N/A Stainless Steel 316 |
Connections material |
N/A Stainless Steel 316 |
Pressure Port Thread Type |
N/A PF |
Pressure Port Size |
N/A 3/8 in |
Maximum Full Scale (FS) Linearity (±) at -10 to 50 Degree Celsius (ºC) Temperature |
N/A 0.3 % |
Maximum Full Scale (FS) Linearity (±) at 50 to 70 Degree Celsius (ºC) Temperature |
N/A 0.5 % |
Pressure Range |
N/A 0.00 to 10.00 kgf/cm² |
Measured Materials |
N/A Liquid, Gas, Oil (except corrosive environment of stainless steel type 316) |
Full Scale (FS) Hysteresis (±) |
N/A 0.3 % |
Measurement Pressure |
N/A Gauge |
Connector Type |
N/A German Institute for Standardization (DIN) Connector |
Shipping Weight |
N/A 350 g |
Unit Weight |
N/A 320 g |
Weight |
N/A 0.2 lb |
