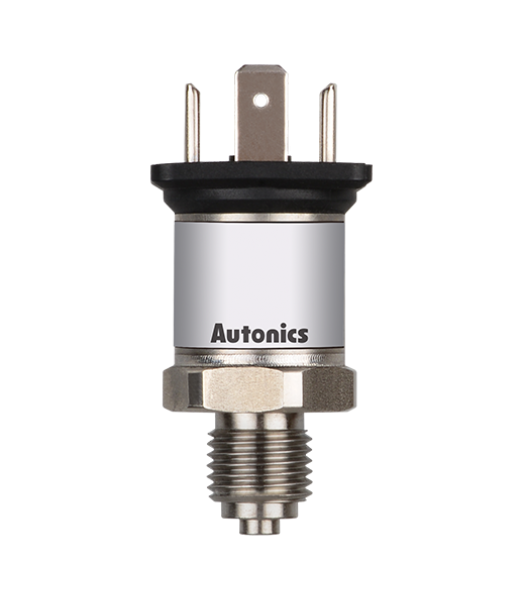

Pressure Transmitter, Gauge Pressure, DIN 43650-A Connector Type, 0 to 0.1 Mpa, 4-20 mA Output, NPT1/4 inch
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Transmitter Type |
N/A Gauge Pressure |
Connection Type |
N/A German Institute for Standardization (DIN) 43650-A Connector Type |
Pressure Port Thread Type |
N/A National Pipe Taper (NPT) |
Pressure Port Size |
N/A 1/4 in |
Output Direct Current (DC) |
N/A 4 to 20 mA |
Pressure Range |
N/A 0 to 0.1 MPa |
Measurement Pressure |
N/A Gauge |
Weight |
N/A 0.2 lb |
