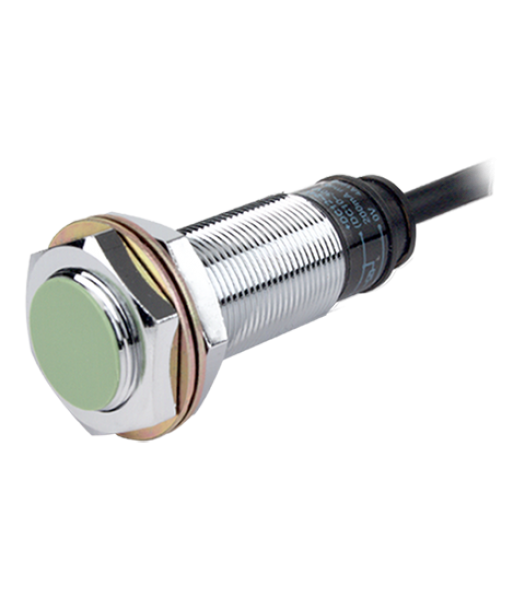

Sensor, Inductive Prox, M18 Round, Shielded, 5mm Sensing, NO, 100-240 VAC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Type |
N/A Standard (PR Series) |
Header Dimension |
N/A 18 mm |
Installation |
N/A Non-Shield |
Sensing Distance |
N/A 8 mm |
Wire Type |
N/A Alternating Current (AC) 2-Wire |
Connection Type |
N/A Cable |
Alternating Current (AC) Voltage Range |
N/A 100 to 240 V |
Output Type |
N/A Negative Positive Negative (NPN) |
Control Output |
N/A Normally Open |
Frequency |
N/A 20 Hz |
Sensing Type |
N/A M18 |
Standard Sensing Target |
N/A 18 x 18 x 1 mm |
Standard Sensing Material |
N/A Iron |
Maximum Leakage Current |
N/A 2.5 mA |
Material |
N/A Brass(Nickel Plated)) |
Standard Cable Material |
N/A Standard Cable |
Protection Structure |
N/A Ingress Protection (IP) 67 |
Approval |
N/A European Conformity (CE) |
Body Type |
N/A Standard Type |
Environment Ambient Temperature |
N/A -25 to 70 ºC |
Environment Storage Temperature |
N/A -30 to 80 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 95 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 95 % |
Maximum Sensing Distance Hysteresis |
N/A 10 % |
Maximum Residual Voltage |
N/A 10 V |
Shipping Weight |
N/A 130 g |
Unit Weight |
N/A 118 g |
Weight |
N/A 0.44 lb |
Response Frequency |
N/A 20 Hz |
Insulation Type |
N/A Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv) |
