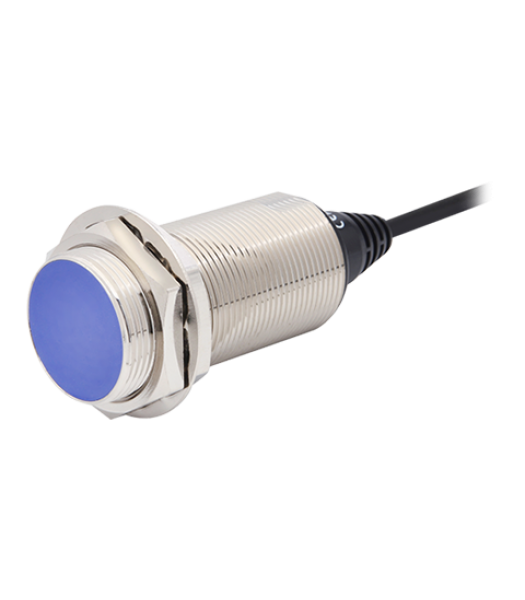

Sensor, Inductive Prox, M30 Round Long, Shielded, 15mm Sensing, PNP, NO, 3 Wire, 10-30 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Installation |
N/A Shield (Flush) |
Sensing Distance |
N/A 15 mm |
Control Output |
N/A Positive Negative Positive (PNP) Normally Open |
Sensing Type |
N/A M30 |
Standard Sensing Target |
N/A 45 x 45 x 1 mm |
Standard Sensing Material |
N/A Iron |
Maximum Current Consumption |
N/A 10 mA |
Material |
N/A Brass(Nickel Plated)) |
Standard Cable Material |
N/A Standard Cable |
Protection Structure |
N/A Ingress Protection (IP) 67 |
Approval |
N/A European Conformity (CE) |
Body Type |
N/A Long Body |
Environment Ambient Temperature |
N/A -25 to 70 ºC |
Environment Storage Temperature |
N/A -30 to 80 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 95 % |
Environment Storage Relative Humidity (RH) |
N/A 35 to 95 % |
Maximum Sensing Distance Hysteresis |
N/A 10 % |
Maximum Residual Voltage |
N/A 1.5 V |
Shipping Weight |
N/A 215 g |
Weight |
N/A 1 lb |
Response Frequency |
N/A 100 Hz |
