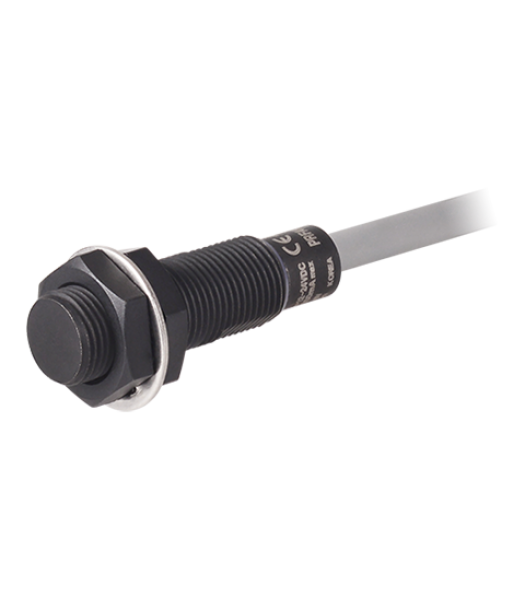

Sensor, Inductive Prox, Full Metal, Spatter Resistance, M12 Round, Shielded, 2mm Sensing, NO, 2 …
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Type

 N/A Full Metal (PRF Series)

Header Dimension

 N/A 12 mm

Installation

 N/A Shield

Sensing Distance

 N/A 2 mm

Connection Type

 N/A Cable

Control Output

 N/A Normally Open

Sensing Side Diameter

 N/A 12 mm

Standard Sensing Target

 N/A 12 x 12 x 1 mm

Standard Sensing Material

 N/A Iron

Maximum Leakage Current

 N/A 0.8 mA

Material

 N/A SUS303

Standard Cable Material

 N/A Oil resistant cable

Protection Structure

 N/A Ingress Protection (IP) 67

Approval

 N/A Canadian and US Standards by Underwriters' Laboratories (CULUS) Eurasian Conformity (EAC) European Conformity (CE)

Body Type

 N/A Standard Type

Environment Ambient Temperature

 N/A -25 to 70 ºC

Environment Storage Temperature

 N/A -30 to 80 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 95 %

Environment Storage Relative Humidity (RH)

 N/A 35 to 95 %

Maximum Sensing Distance Hysteresis

 N/A 15 %

Maximum Residual Voltage

 N/A 3.5 V

Shipping Weight

 N/A 110 g

Unit Weight

 N/A 83 g

Weight

 N/A 0.2 lb

Response Frequency

 N/A 100 Hz

Note

Note

 N/A
  • When using the nut which is not SUS303 material such as brass, the sensing distance is variable.
  • The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
  • Option is 5m.
  • The weight includes packaging. The weight in parenthesis is for unit only.
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
