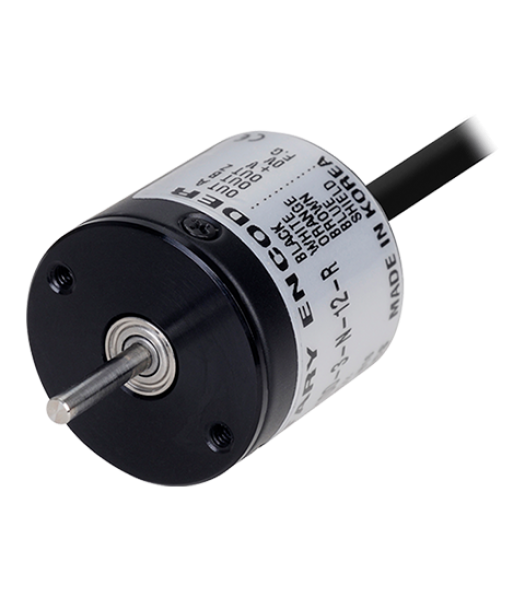

Encoder, Incremental, Diameter 20 mm, 2 mm Shaft, 360 PPR, A,B,Z, Voltage output, 12 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 2 mm |
Maximum Response Frequency |
N/A 100 kHz |
Maximum Allowable Revolution |
N/A 6000 rpm |
Maximum Starting Torque |
N/A 5 gf·cm0.00049 N·m |
Resolution |
N/A 360 |
Output Phase |
N/A A B Z |
Control Output |
N/A Voltage output |
Direct Current (DC) Voltage |
N/A 12 V |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Connection Type |
N/A Axial Cable Type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Storage Temperature |
N/A -20 to 80 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Environment Ambient Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Accessories |
N/A Coupling Diameter 2 mm |
Approximate Weight |
N/A 35 g |
Type |
N/A Incremental |
Shaft Size |
N/A 20 mm |
Connector Type |
N/A Rear |
Weight |
N/A 0.3 lb |
