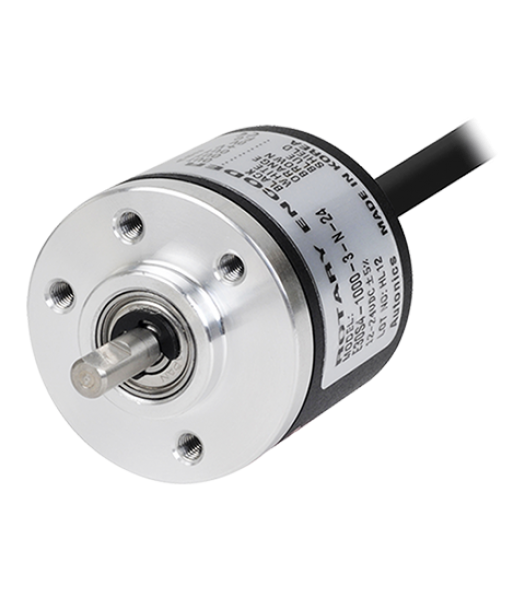

Encoder, Incremental, Diameter 30 mm, 4 mm Shaft, 1024 PPR, A,B,Z, Totem pole output, 12-24 VDC
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Shaft Inner Diameter

 N/A 4 mm

Maximum Response Frequency

 N/A 300 kHz

Maximum Allowable Revolution

 N/A 5000 rpm

Maximum Starting Torque

 N/A 20 gf·cm0.00196 N·m

Resolution

 N/A 1024

Output Phase

 N/A A B Z

Control Output

 N/A Totem Pole

Direct Current (DC) Voltage

 N/A 12 to 24 V

Direct Current (DC) Voltage Tolerance (±)

 N/A 5 %

Connection Type

 N/A Axial Cable Type

Protection Structure

 N/A Ingress Protection (IP) 50

Approval

 N/A European Conformity (CE)

Environment Ambient Temperature

 N/A -10 to 70 ºC

Environment Ambient Storage Temperature

 N/A -25 to 85 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Environment Ambient Storage Relative Humidity (RH)

 N/A 35 to 90 %

Accessories

 N/A Coupling Diameter 4 mm

Approximate Weight

 N/A 80 g

Type

 N/A Incremental

Shaft Size

 N/A 30 mm

Connector Type

 N/A Cable

Weight

 N/A 0.33 lb

Note

Note

 N/A
  • Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
    • [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
  • The weight includes packaging. The weight in parenthesis is for unit only.
  • Environment resistance is rated at no freezing or condensation.
