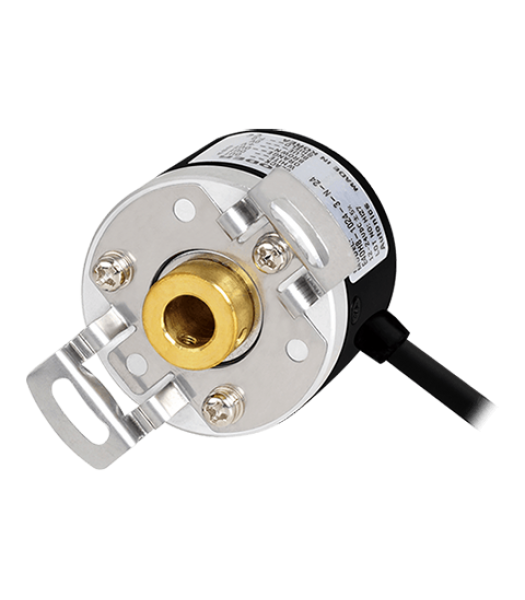

Encoder, Incremental, Ø40mm, 6mm Hollow Shaft, 600 PPR, A,B,Z, Voltage output, 12-24VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 6 mm |
Maximum Response Frequency |
N/A 300 kHz |
Maximum Allowable Revolution |
N/A 5000 rpm |
Maximum Starting Torque |
N/A 50 gf·cm0.0049 N·m |
Resolution |
N/A 600 pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Voltage |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Connection Type |
N/A Radial Cable type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A Bracket |
Diameter |
N/A 40 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shipping Weight |
N/A 120 g |
Weight |
N/A 0.2 lb |
