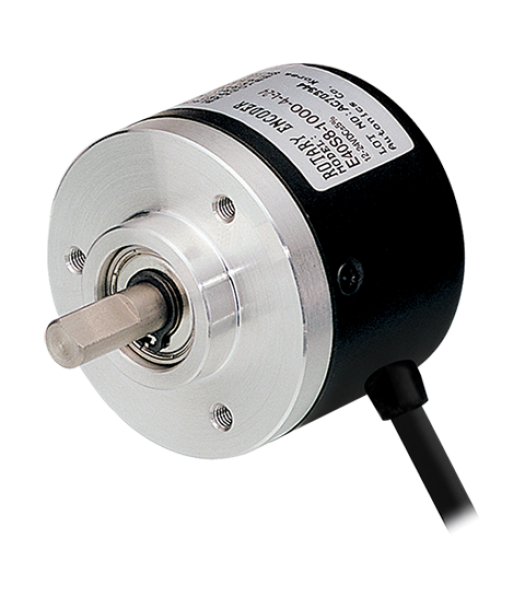

Encoder, Incremental, Ø40mm, 8mm Shaft, 60 PPR, A,B,Z, NPN open collector output, 12-24VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Outer Diameter |
N/A 8 mm |
Maximum Response Frequency |
N/A 300 kHz |
Maximum Allowable Revolution |
N/A 5000 rpm |
Maximum Starting Torque |
N/A 40 gf·cm0.00392 N·m |
Resolution |
N/A 60 pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Negative Positive Negative (NPN) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Connection Type |
N/A Radial Cable type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A 6mm Diameter Coupling Standard 8mm Diameter Coupling (Sold Separately) |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Diameter |
N/A 40 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A 40 mm Shaft |
Shipping Weight |
N/A 120 g |
Weight |
N/A 0.44 lb |
Note
Note |
N/A
Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
