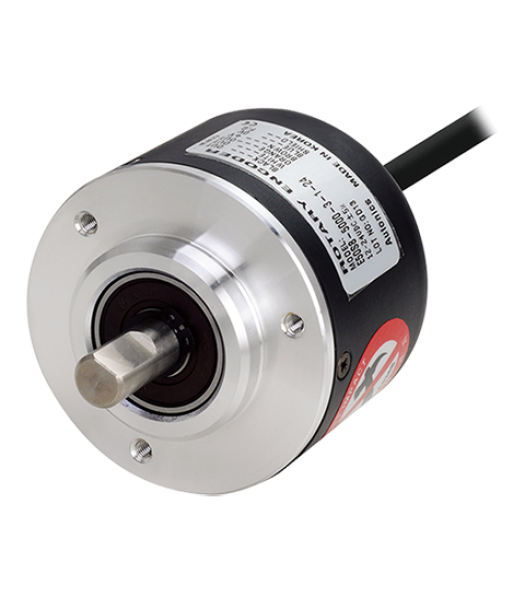

Encoder, Incremental, Ø50mm, 8mm Shaft, 200 PPR, A,B,Z, Totem pole output, 12-24VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Outer Diameter |
N/A 8 mm |
Maximum Response Frequency |
N/A 300 kHz |
Maximum Allowable Revolution |
N/A 5000 rpm |
Maximum Starting Torque |
N/A 70 gf·cm0.00686 N·m |
Resolution |
N/A 200 pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Totem Pole |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Connection Type |
N/A Axial Cable Type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A 8mm Diameter Coupling Bracket |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Diameter |
N/A 50 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A 50 mm Shaft |
Shipping Weight |
N/A 363 g |
Unit Weight |
N/A 275 g |
Weight |
N/A 0.79 lb |
Note
Note |
N/A
Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] In case of axial cable type, axial cable connector type, they are available to order the option protection structure IP64. The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
