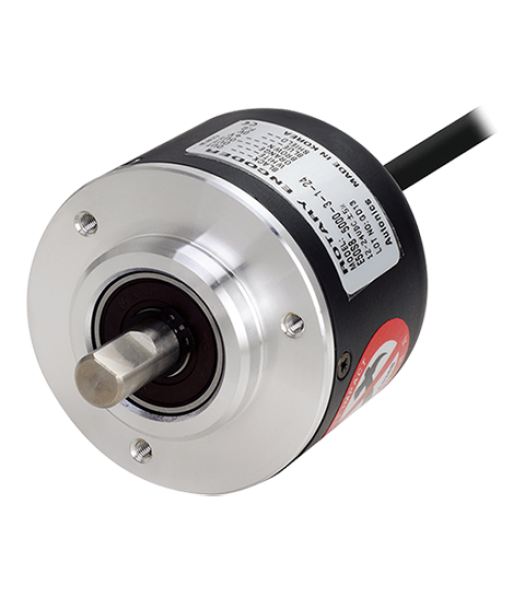

Encoder, Incremental, Ø50mm, 8mm Shaft, 360 PPR, A,A/,B,B/,Z,Z/ Line driver output, 5VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Outer Diameter |
N/A 8 mm |
Maximum Response Frequency |
N/A 300 kHz |
Maximum Allowable Revolution |
N/A 5000 rpm |
Resolution |
N/A 360 pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Line Driver |
Direct Current (DC) Voltage |
N/A 5 V |
Connection Type |
N/A Axial Cable Type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A 8mm Diameter Coupling Bracket |
Diameter |
N/A 50 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shipping Weight |
N/A 363 g |
Unit Weight |
N/A 275 g |
Weight |
N/A 0.79 lb |
