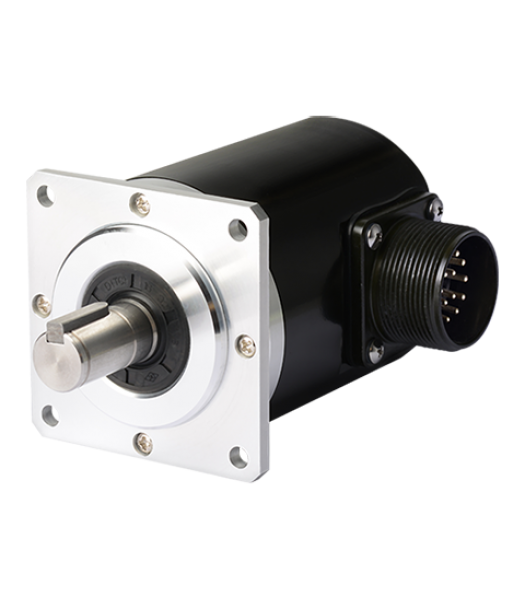

Encoder, Incremental, Ø68mm, 15mm Shaft, 1024 PPR, A,A/,B,B/,Z,Z/ Line driver output, 5VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Outer Diameter |
N/A 15 mm |
Maximum Response Frequency |
N/A 180 kHz |
Maximum Allowable Revolution |
N/A 6500 rpm |
Maximum Starting Torque |
N/A 0.147 N·m1.5 kgf·cm |
Resolution |
N/A 1024 pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Line Driver |
Direct Current (DC) Voltage |
N/A 5 V |
Connection Type |
N/A Radial Connector Type |
Protection Structure |
N/A Ingress Protection (IP) 65 |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Diameter |
N/A 68 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A 68 mm Shaft |
Shipping Weight |
N/A 550 g |
Weight |
N/A 1.43 lb |
Note
Note |
N/A
Connector standard: MS3102A20-29P Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
