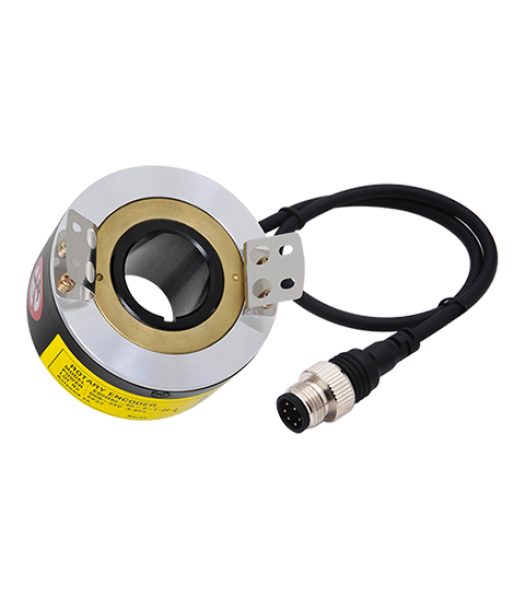

Encoder, Incremental, Ø80mm, 30mm Hollow Shaft, 1024 PPR, A,A/,B,B/,Z,Z/ Line driver output, Co…
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 30 mm |
Maximum Response Frequency |
N/A 200 kHz |
Maximum Allowable Revolution |
N/A 3600 rpm |
Maximum Starting Torque |
N/A 200 gf·cm0.0196 N·m |
Resolution |
N/A 1024P/R pulses/rev |
Output Phase |
N/A A B Z |
Control Output |
N/A Line Driver |
Direct Current (DC) Voltage |
N/A 5 V |
Connection Type |
N/A Radial Cable type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A Spring Bracket |
Diameter |
N/A 80 mm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shipping Weight |
N/A 560 g |
Weight |
N/A 0.2 lb |
Note
Note |
N/A
Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
