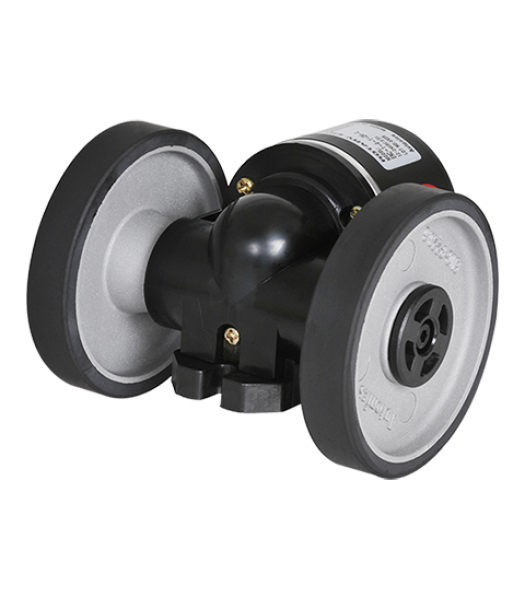

Encoder, Incremental, Wheel Type, 1 Pulse Per 1m, Totem pole output, 12-24 VDC, Cable outgoing c…
Unit of Measure

Specifications

Brands

 N/A Autonics USA

Maximum Response Frequency

 N/A 180 kHz

Maximum Allowable Revolution

 N/A 5000 rpm

Output Phase

 N/A A B

Control Output

 N/A Totem Pole

Direct Current (DC) Voltage

 N/A 12 to 24 V

Connection Type

 N/A Axial Cable Connector Type

Protection Structure

 N/A Ingress Protection (IP) 50

Approval

 N/A European Conformity (CE)

Environment Ambient Temperature

 N/A -10 to 70 ºC

Environment Ambient Relative Humidity (RH)

 N/A 35 to 85 %

Maximum Ripple Factor

 N/A 5 %

Maximum Ripple Factor Tolerance (±)

 N/A 5 %

Environment Storage Temperature

 N/A -25 to 85 ºC

Environment Storage Relative Humidity (RH)

 N/A 35 to 90 %

Wheel Diameter

 N/A 250 mm

Gear Ratio

 N/A 4:1

Number of Pulses

 N/A 1

Minimum Measurement Unit

 N/A 1 Meter

Shipping Weight

 N/A 494 g

Weight

 N/A 0.2 lb

Note

Note

 N/A
  • Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
  • The weight includes packaging. The weight in parenthesis is for unit only.
  • Environment resistance is rated at no freezing or condensation.
