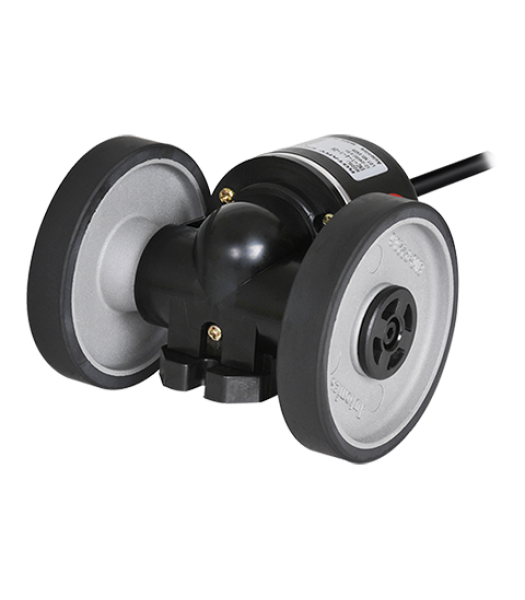

Encoder, Incremental, Wheel Type, 1 Pulse Per 1 Yard, NPN open collector output, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Maximum Response Frequency |
N/A 180 kHz |
Maximum Allowable Revolution |
N/A 5000 rpm |
Output Phase |
N/A A B |
Control Output |
N/A Negative Positive Negative (NPN) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Connection Type |
N/A Axial Cable Type |
Protection Structure |
N/A Ingress Protection (IP) 50 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A Wheel |
Wheel Diameter |
N/A 228.6 mm0.25 yd |
Wheel Circumference |
N/A 0.25 yd |
Gear Ratio |
N/A 0.167361 |
Number of Pulses |
N/A 1 |
Minimum Measurement Unit |
N/A 1 Yards |
Minimum Measuring Unit |
N/A 1 yd |
Shipping Weight |
N/A 494 g |
Weight |
N/A 1.28 lb |
Note
Note |
N/A
Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
