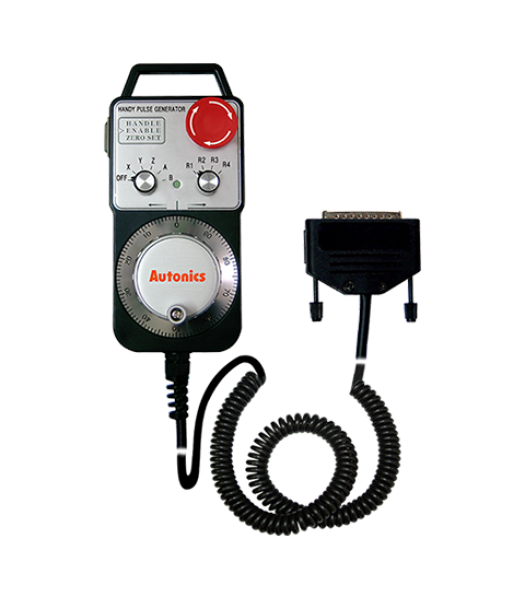

PuPulse Generator, Hand Held, 100 PPR, 3 Feed Rates 5 Axis, Quadrature ,Line Driver Output, 5 VDCse Generator, Hand Held, 100 PPR, 3 Feed Rates 5 Axis, Quadrature ,Line Driver Output, 5 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Resolution |
N/A 100 pulses/rev |
Output Phase |
N/A A B |
Control Output |
N/A Line Driver |
Direct Current (DC) Voltage |
N/A 5 V |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Maximum Allowable Normal Revolution |
N/A 200 rpm |
Maximum Allowable Peak Revolution |
N/A 600 rpm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Shaft Type |
N/A Portable handle |
Weight |
N/A 1.76 lb |
