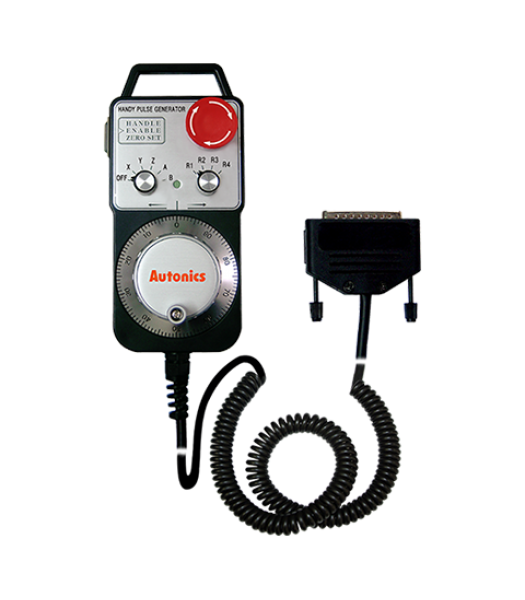

Pulse Generator, Hand Held, 100 PPR, 3 Feed Rates 5 Axis, Quadrature ,Line Driver Output, 5 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Maximum Response Frequency |
N/A 10 kHz |
Maximum Starting Torque |
N/A 0.098 N·m1 kgf·cm |
Resolution |
N/A 100 pulses/rev |
Output Phase |
N/A A B |
Control Output |
N/A Line Driver |
Direct Current (DC) Voltage |
N/A 5 V |
Connection Type |
N/A D-SUB Connector Type |
Protection Structure |
N/A Ingress Protection (IP) 67 |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Type |
N/A Incremental |
Connector Type |
N/A Cable |
Maximum Allowable Normal Revolution |
N/A 200 rpm |
Maximum Allowable Peak Revolution |
N/A 600 rpm |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A Portable handle |
Click Stopper Position |
N/A Normal "L" |
Shipping Weight |
N/A 730 g |
Weight |
N/A 1.76 lb |
Note
Note |
N/A
The power of Line driver is only for 5VDC. Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] It is protection for the rear case and the wiring part. The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
