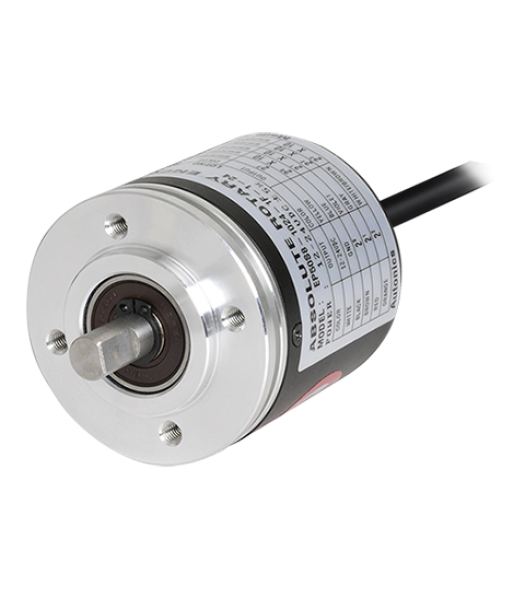

Encoder, Absolute, 8mm Shaft, 1024 Divisions Per Rev, Binary Code, PNP Output, CW Increase, 12-…
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 8 mm |
Maximum Response Frequency |
N/A 35 kHz |
Maximum Allowable Revolution |
N/A 3000 rpm |
Maximum Starting Torque |
N/A 70 gf·cm0.0069 N·m |
Resolution |
N/A 1024 pulses/rev |
Output Phase |
N/A BINARY |
Control Output |
N/A Positive Negative Positive (PNP) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Connection Type |
N/A Axial Cable Type |
Protection Structure |
N/A Ingress Protection (IP) 64 |
Approval |
N/A European Conformity (CE) |
Environment Ambient Temperature |
N/A -10 to 70 ºC |
Environment Ambient Relative Humidity (RH) |
N/A 35 to 85 % |
Accessories |
N/A Bracket Coupling |
Type |
N/A Absolute (Single-turn) |
Connector Type |
N/A Cable |
Maximum Ripple Factor |
N/A 5 % |
Maximum Ripple Factor Tolerance (±) |
N/A 5 % |
Direct Current (DC) Voltage Tolerance (±) |
N/A 5 % |
Environment Storage Temperature |
N/A -25 to 85 ºC |
Environment Storage Relative Humidity (RH) |
N/A 35 to 90 % |
Shaft Type |
N/A 50 mm Shaft |
Rotating Direction |
N/A Clockwise (CW) |
Output Code |
N/A Binary Code |
Shipping Weight |
N/A 482 g |
Unit Weight |
N/A 398 g |
Weight |
N/A 1.06 lb |
Note
Note |
N/A
In case of Parallel type model, Make sure that Max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution. [Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec] The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. |
