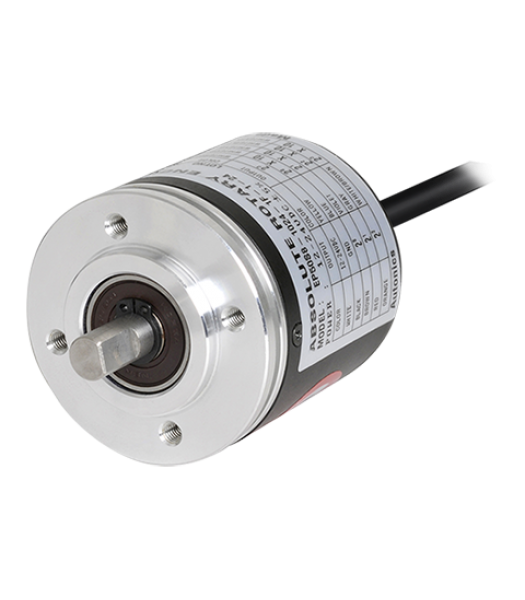

Encoder, Absolute, 50mm Dia., Shaft, 256 Divisions Per Rev, Binary Code, NPN Output, CW Increase, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Resolution |
N/A 256 pulses/rev |
Output Phase |
N/A BINARY |
Control Output |
N/A Negative Positive Negative (NPN) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Type |
N/A Absolute (Single-turn) |
Connector Type |
N/A Cable |
Diameter |
N/A 50 mm |
Shaft Type |
N/A 50 mm Shaft |
Rotating Direction |
N/A Clockwise (CW) |
Weight |
N/A 1.06 lb |
