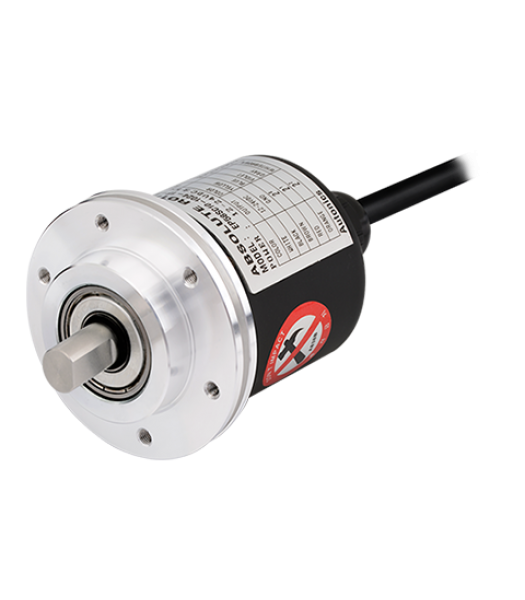

Encoder, Absolute, 58mm Body, 10mm Shaft, 1024 Divisions Per Rev, BCD Code, NPN Output, CW Increase, 12-24 VDC
Unit of Measure
Specifications
Brands |
N/A Autonics USA |
Shaft Inner Diameter |
N/A 10 mm |
Resolution |
N/A 1024 pulses/rev |
Output Phase |
N/A BCD |
Control Output |
N/A Negative Positive Negative (NPN) |
Direct Current (DC) Voltage |
N/A 12 to 24 V |
Type |
N/A Absolute (Single-turn) |
Connector Type |
N/A Cable |
Shaft Type |
N/A 58 mm Shaft (Clamping) |
Rotating Direction |
N/A Clockwise (CW) |
Weight |
N/A 1.18 lb |
